  11. Pillow Block Brg, 4 7/16in Bore, Cast Iron

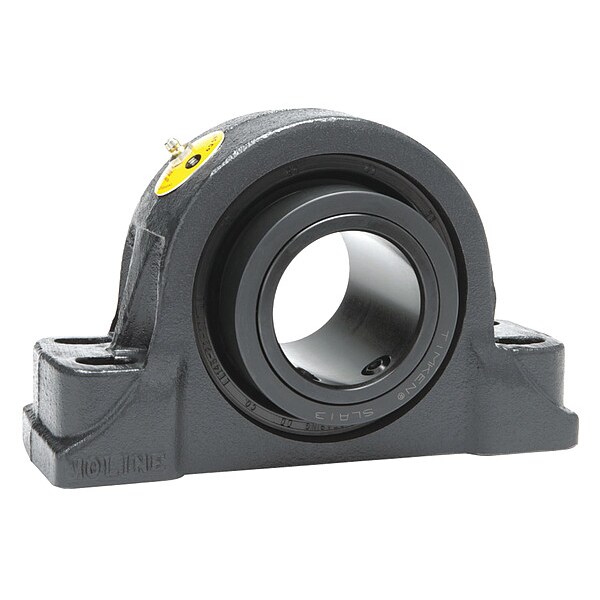

Moline Bearing Pillow Block Brg, 4 7/16in Bore, Cast Iron 19241407 - main

Pillow Block Brg, 4 7/16in Bore, Cast Iron

  • Mfr # 19241407

  • Zoro # G1159896

product price: $2,511.99
/ea
Free Shipping & Returns

Key Features

Dynamic Load Capacity
91,700 lb
Temp. Range
-40 Degrees to 250 Degrees F
Static Load Capacity
126,000 lb
Includes
Non-Expansion M2000 Spherical Roller Bearing
Bore Dia.
4 7/16 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
19241407
Zoro #
G1159896
UPC #
-
Country of Origin
United States

Dimensions

Bore Dia.
4 7/16 in
Overall Length
16.5 in
Dimension J
9 1/2 in
Dimension G
1 5/16 in
Dimension H
2 3/4 in
Bolt Size
3/4 in
Dimension A
6 1/8 in
Dimension M
4 3/4 in
Dimension F
3/4 in
Dimension N
6 1/8 in
Dimension D
13 in
Dimension L
6 1/8 in
Dimension B
16 1/2 in
Overall Width
5.5 in
Dimension C
4 3/4 in
Overall Height
9.5 in
Base Width
4.75 in
Center Height
4 3/4 in
Mount Hole Center-to-Center Length
13 1/2 in
Base Height
2.75 in
Mount Hole Size
1 5/16 in
Bore Diameter
4 7/16 in
Mounting Bolt Size
3/4 in
Mount Hole Center-to-Center Width
2 1/2 in

Details

Dynamic Load Capacity
91,700 lb
Item
Pillow Block Bearing
Temp. Range
-40 Degrees to 250 Degrees F
Static Load Capacity
126,000 lb
Includes
Non-Expansion M2000 Spherical Roller Bearing
Mounting Surface to Shaft Center
4 3/4 in
Number of Bolts
4
Bearing Housing Material Type
Cast Iron
Bolt Hole Center-to-Center
13 1/2 in
Bearing Lubrication
Lithium Complex Grease
Bearing Insert Type
Spherical Roller
Shaft Locking Type
Set Screws
Max. Speed
1,150 RPM
Bearing Insert Material
Alloy Steel
Seal Type
Contact
Expansion Type
Fixed
Maximum Misalignment Angle
5.5 Degrees
Load Direction
Thrust
Minimum Temperature
-40 Degrees F
Bearing Material Grade
52100
Features
+/-11/2 Degrees Misalignment Capacity, Assembled, Adjusted and Pre-Lubricated in Advance for Immediate Use, Built with Skf(TM) and Timken(TM) Spherical Roller Bearings, Expansion Units have .100 in Capacity, Piloted Flange Housings are Machined with Back-Out Holes, Precision Ground Contours, Rotating Center Guide Ring for Least Possible Friction, Single Piece Outer Race is Grooved and has 3 Lube Holes for Even Distribution of Grease), Standard Units have One Locking Collar, Timken(TM) Lithium Complex Grease Operating Temperature is up to 250 Degrees , High Temperature Grease is Available up to 350 Degrees , will Accommodate Moderate Thrust Loads and Permits Angular Misalignment without Loss of Capacity
Dynamic Axial Load Capacity
91,700 lbf
Lubricant Material
Lithium Grease
Included Bearing
Non-Expansion M2000 Spherical Roller
Maximum Temperature
250 Degrees F
Application
Air Handling, Conveying, Food Processing, Paper and Forestry, Screening
Maximum Speed
1,150 RPM
Static Radial Load Capacity
126,000 lbf
Mount Type
Bolt-Through
Number of Mount Holes
4
Housing Material
Cast Iron
System of Measurement
Inch
Bore Type
Cylindrical
Closure
Double Sealed

Description

Pillow Block Bearing, Base Height 2.75 in, Base Width 4.75 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Spherical Roller, Bore Diameter 4 7/16 in, Bore Type Cylindrical, Center Height 4 3/4 in, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Included Bearing Non-Expansion M2000 Spherical Roller, Lubricant Material Lithium Grease, Maximum Speed 1,150 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F
