Monarch

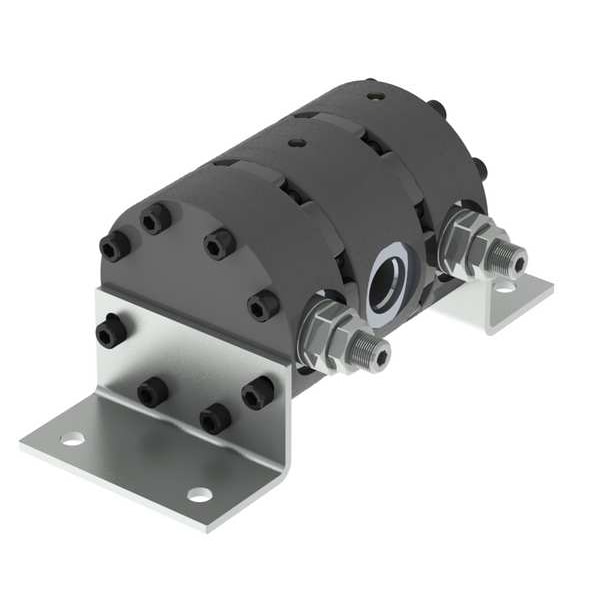

Hydraulic Flow Divider, 3000 psi, Aluminum

product price: $237.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Overall Length 7.04 in
  • Overall Height 3.57 in
  • Width (In.) 3.25 in
  • Displacement (cc/rev) 4.05 cc/rev
  • Operating Pressure (PSI) 3,000 psi
See all product information

Product Information

Dimensions

Overall Length 7.04 in
Overall Height 3.57 in
Width (In.) 3.25 in
Port Size Outlet (In.) 9/16-18
Overall Width 3.25 in
Length (In.) 7.04 in
Height (In.) 3.57 in
Port Size Inlet (In.) 3/4-16
Outlet Connection Dash Size 18
Inlet Connection Size 3/4 in
Inlet Connection Dash Size 16
Outlet Connection Size 9/16 in

Details

Displacement (cc/rev) 4.05 cc/rev
Operating Pressure (PSI) 3,000 psi
Gears 13 Tooth Hardened Steel
Flow Rate (GPM) 2.2-8
Valve Type Integral Differential Relief
Function Divider/Combiner 50/50
Max. RPM 4,000 RPM
Item Hydraulic Flow Divider
RPM Range 2000 to 3500
Type Rotary Gear
Max. Outer Pressure (PSI) 4,000 psi
Body Material Aluminum
Seal Material NBR
Outlet Pressure - Maximum 4,000 psi
Inlet Connection Type SAE 45 Degrees Flare
Speed - Maximum 3,500 RPM
Flow Rate - Minimum 2.2 gpm
Outlet Connection Type SAE 45 Degrees Flare
Includes Seals Seals Included
Pressure - Maximum 4,000 psi
Includes Relief Valve Relief Valve Included
Gear Material Steel
Number of Gear Teeth 13
Flow Rate - Maximum 8.5 gpm
Speed - Minimum 1,500 RPM

Description

Hydraulic Flow Divider, Inlet Connection Type SAE 45 Degrees Flare, Outlet Connection Type SAE 45 Degrees Flare, Inlet Connection Size 3/4 in, Outlet Connection Size 9/16 in, Pressure - Maximum 4,000 psi, Flow Rate - Maximum 8.5 gpm, Flow Rate - Minimum 2.2 gpm, Speed - Maximum 3,500 RPM, Speed - Minimum 1,500 RPM, Body Material Aluminum, Inlet Connection Dash Size 16, Outlet Connection Dash Size 18, Number of Gear Teeth 13, Gear Material Steel, Overall Height 3.57 in, Overall Length 7.04 in
