Shop All Hydraulic Power Units
Monarch

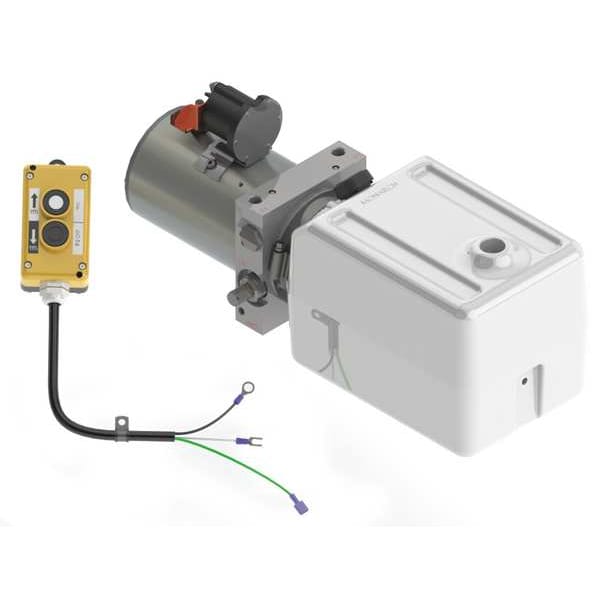

Power Unit, 1 Stage, 12VDC, 3000 psi

product price: $737.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Power Source - Power Units DC Power
  • Voltage 12V DC
  • Nominal Flow 2.5 gpm
  • Max. Pressure 3,000 psi
  • Reservoir Capacity 1 gal
See all product information

Product Information

Dimensions

Overall Length 18 3/8 in
Overall Width 8 1/8 in
Overall Height 7 19/32 in

Details

Power Source - Power Units DC Power
Voltage 12V DC
Nominal Flow 2.5 gpm
Max. Pressure 3,000 psi
Reservoir Capacity 1 gal
Mounting Horizontal/Vertical
Pressure Port 1/4"-18 NPT
Built-In Features Adjustable Relief Valve, Double Pilot Operated Check Valves
Item Hydraulic Power Unit
Return Port 1/4"-18 NPT
Number of Stages 1
Control Valve 4 Way/2 Position
HP 2.1 hp
Full Load Amps 31.30 to 37.00
Mounting Orientation - Power Units Horizontal or Vertical
Frame Design - Hydraulic Power Units Compact
Circuit Design Double Acting

Description

Hydraulic Power Unit, Circuit Design Double Acting, Power Source - Power Units DC Power, 2.1 hp HP, 12V DC, Full Load Amps 275, Pump Stage 1, Max. Pressure 3,000 psi, Nominal Flow 2.5 gpm, Reservoir Capacity 1 gal, Overall Length 18 3/8 in, Overall Width 8 1/8 in, Overall Height 7 19/32 in
