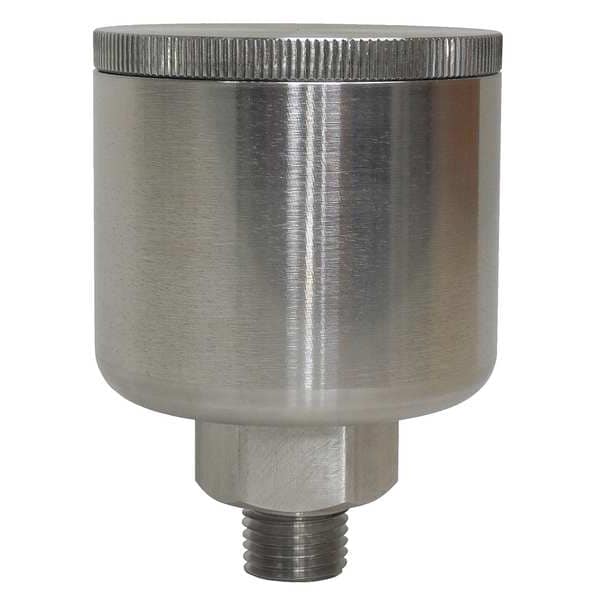

Pressure/Temperature Data Logger 150 Psi

  • Mfr # 5396-0301

  • Zoro # G5213135


product price: $485.99
/ea
Free Shipping & Returns

Key Features

Interface
USB
Includes
Cable
Features
1/4 in NPT Male Connection, 150% Over Range Protection, Adjustable Alarm, Bluetooth Low Energy (LE), IP67 Rated, Programmable Sample Rate, Programmable Start/Stop Time, USB Interface
Temp. Range (F)
-4 Degrees to 185 Degrees F
Accuracy
+/-1%
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5396-0301
Zoro #
G5213135
UPC #
-
Country of Origin
United States

Dimensions

Width (In.)
2.19 in
Manufacturers Warranty Length
1 yr
Connection Size
USB Mini
Dia.
1.95 in
Manufacturer Warranty Length
1 yr
Overall Height
2 1/4 in
Overall Width
2 1/4 in
Battery Size
AA
Overall Diameter
1.95 in

Details

Item
Data Logger
Interface
USB
Includes
Cable
Features
1/4 in NPT Male Connection, 150% Over Range Protection, Adjustable Alarm, Bluetooth Low Energy (LE), IP67 Rated, Programmable Sample Rate, Programmable Start/Stop Time, USB Interface
Temp. Range (F)
-4 Degrees to 185 Degrees F
Accuracy
+/-1%
Sample Point Storage
64,000
Software Required
Yes
Alarm
yes
Time Intervals
2 sec to 24 hr
Digital Readout
No
Special Features
1/4 in NPT Male
Temp. Range (C)
-20 Degrees to 85 Degrees C
Battery Life
3 yr
Resists
Corrosives, Water
Compatible With
Windows
Waterproof
Yes
Type
Pressure, Temperature
Pressure Range
0 to 150 psia
AC Adapter
no
Power Source
Battery
Software Options
Software Available Separately
Calibration Certificate Type
Available Separately
Maximum Temperature Measured Degrees F
185 Degrees F
Compatible Operating Systems
Windows
Battery Run Time
5 yr
Resistance Properties
Corrosion Resistant, Water Resistant
Minimum Temperature Measured Degrees C
-20 Degrees C
Number of Records Stored
64,000
Maximum Pressure Measured
150 psia
Accuracy Degrees C
+/-1.0 Degrees (0 Degrees to 50.0 Degrees )
Digital Display Screen Type
No Display
Minimum Sampling Rate
2 sec
Maximum Temperature Measured Degrees C
85 Degrees C
Batteries Included
Yes
Minimum Temperature Measured Degrees F
-4 Degrees F
Number of Batteries Required
1
Battery Chemistry
Lithium
Parameters Measured
Pressure, Temperature Degrees C, Temperature Degrees F
Maximum Sampling Rate
24 hr
Alert Type
Sound

Description

Data Logger, AC Voltage Accuracy Not Applicable, Alert Type Sound, Current Channels Not Applicable, Maximum Dew Point Measured Not Applicable, Minimum Dew Point Measured Not Applicable, Calibration Certificate Type Available Separately, Minimum Sampling Rate 2 sec, Maximum AC Current Measurement Not Applicable, Maximum Relative Humidity Measured Not Applicable, Maximum AC Voltage Measured Not Applicable, Minimum Relative Humidity Measured Not Applicable

Restrictions

Hazardous material
