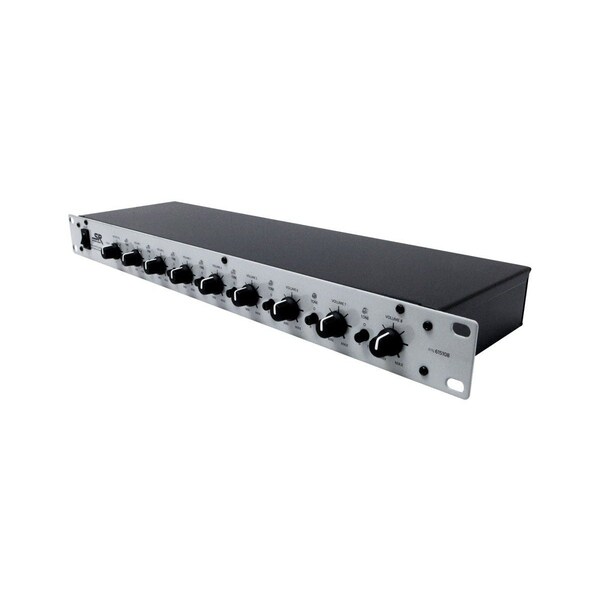

8-Channel 1U Mic Line Rack Mixer with Phantom Power (Discontinued)

The 8 Channel 1U Mic Line Rack Mixer with Phantom Power is an ideal mixer for the stage; studio; boardrooms; conference rooms; health clubs; restaurants; houses of worship; and more. It is also a great fit for any band's live rig; especially for keyboard players and multi-instrumentalists who need to mix or sub-mix multiple sources. This mixer features two inputs with balanced 1/4" TRS and unbalanced RCA connectors; and six inputs with balanced XLR microphone and 1/4" TRS line level inputs. It features a tone control for each input; which can attenuate either low or high frequencies; with 50Hz and 6kHz shelves respectively. It has an unbalanced RCA AUX Bus input and Prefade output; which allows you to daisy chain multiple units. All XLR input channels have independent phantom power switches for condenser mics and active DIs; ensuring silent operation for channels that do not require 48V power. Applications and installs that need more inputs are easily supported by cascading multiple units with pre-Master in/out jacks. This allows one unit to be the master; with multiple units maintaining independent channel control. Total Harmonic Distortion is less than 0.003%. This maintains audio purity and allows for many units to run in and out without degrading signal strength. Features: Eight Mic/Line channels with individual tone and volume controls Six channels with balanced XLR microphone and 1/4" TRS line inputs Two channels with balanced 1/4" TRS microphone and unbalanced RCA line level inputs Individual DIP switches to enable or disable Phantom Power for the XLR microphone inputs Balanced XLR and 1/4" TRS main outputs Unbalanced RCA Aux Bus input and Prefade output for daisy chaining multiple mixers Removable rack mount ears and 1U rack height
