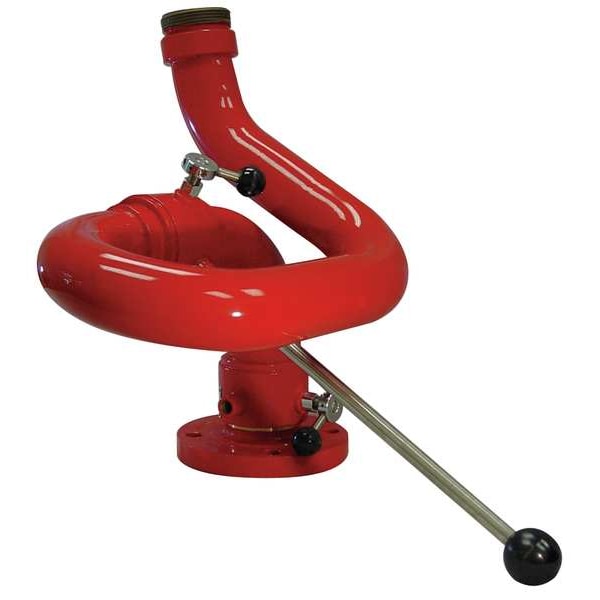

Monitor, 750 gpm, Tiller Control
- Mfr # 507-3072521
- Zoro # G3097096
product price:Â
$
3,993.99
/ea
Free Shipping & Returns
Key Features
Material
Brass
Includes
Positive Twist Locks for Vertical and Horizontal Movements
Standards
FM
Horizontal Travel
360 Degrees
Waterway
2 1/2 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 507-3072521
- Zoro #
- G3097096
- UPC #
- -
- Country of Origin
- Taiwan, Province of China
Dimensions
- Waterway Diameter
- 2 1/2 in
Details
- Item
- Monitor
- Material
- Brass
- Includes
- Positive Twist Locks for Vertical and Horizontal Movements
- Standards
- FM
- Horizontal Travel
- 360 Degrees
- Waterway
- 2 1/2 in
- Outlet
- 2-1/2 in M NHT
- Mounting
- 3 in 150 lb ANSI Flange
- Max. Flow
- 750 gpm
- Inlet
- 3 in Flange
- Max. Pressure
- 100 psi
- Vertical Travel
- 135 Degrees (90 Degrees Above), 45 Degrees Below Horizontal)
- Control
- Tiller
- Product Type
- Monitor
- Maximum Pressure
- 100 psi
- Inlet Fitting Type
- 3 in Flange
- Maximum Flow Rate
- 750 gpm
- Outlet Fitting Type
- 2-1/2 in M NHT
- Shell Material
- Brass
Description
Monitor, Product Type Monitor, Standards FM, Control Tiller, Horizontal Travel 360 Degrees , Includes Positive Twist Locks for Vertical and Horizontal Movements, Inlet Fitting Type 3 in Flange, Material Brass, Maximum Flow Rate 750 gpm, Maximum Pressure 100 psi, Mounting 3 in 150 lb ANSI Flange, Outlet Fitting Type 2-1/2 in M NHT, Vertical Travel 135 Degrees (90 Degrees Above), 45 Degrees Below Horizontal), Waterway Diameter 2 1/2 in
