  11. Cast Iron Single-Reduction Worm Reducer, 175Q140L5
This item is Discontinued.

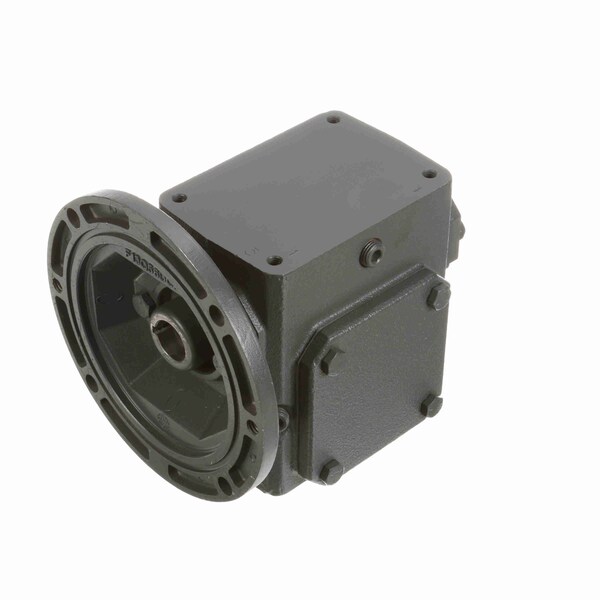

Morse Cast Iron Single-Reduction Worm Reducer, 175Q140L5 175Q140L5

Cast Iron Single-Reduction Worm Reducer, 175Q140L5 (Discontinued)

  • Mfr # 175Q140L5
  • Zoro # G5007647
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
175Q140L5
Zoro #
G5007647
UPC #
662288343455
Country of Origin
United States

Dimensions

Dimension H
2.06 in
Dimension V
2.05 in
Dimension L
3.24 in
Dimension D
2.06 in
Dimension B
4.81 in
Dimension K
2.09 in
Dimension BD
6.5 in
Dimension G
1.38 in
Dimension A
3.38 in
Dimension M
6.78 in
Dimension C
5.75 in
Dimension Tt
0.875 in
Dimension F
2.75 in

Details

Item
Worm Speed Reducer
Nominal Ratio
5:1
Input RPM
1750 rpm; 1750 rpm
Nominal Output RPM
350 rpm
Reducer Model No.
175Q
Max. Output Torque
436 in-lbs @1750 input RPM
Solid/Hollow Output Shaft
Solid Shaft
Speed Reducer Type
Standard
Mounting
No Base
Housing Material
Cast Iron
Frame
140TC
Worm Center Distance
1.75 1.75 in
Gear Type
Worm
