This item is Discontinued.

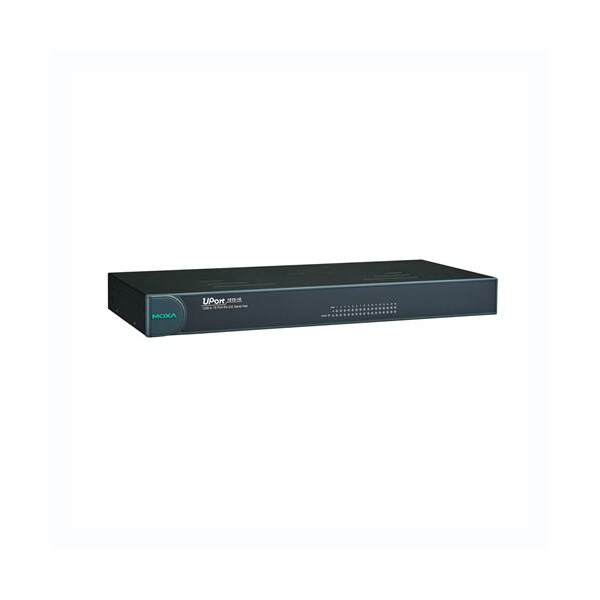

Moxa 16Port Usb-To-Serial Hub, Rs-232 UPort 1610-16

16Port Usb-To-Serial Hub, Rs-232 (Discontinued)

Mfr # UPort 1610-16
Zoro # G4579498

Get a 10% off coupon

Free 30-day returns

Get 30 days to pay with Net 30

Real support from real people

Specifications

Product Information

MFR #

UPort 1610-16

Zoro #

G4579498

UPC #

Country of Origin

Taiwan, Province of China

Dimensions

440 x 45.5 x 198.1 mm (17.32 x 1.79 x 7.80 in)

Details

Housing

SECC sheet metal (1 mm)

RS-485-2w

Data+(B), Data-(A), GND

RS-485 Data Direction

ADDC® (Automatic Data Direction Control)

Input Voltage

100 to 240 VAC external power

ESD Protection

15 kV embedded

Speed

480 Mbps (Hi-Speed USB) and 12 Mbps (Full-Speed USB)

Parity

None, Even, Odd, Space, Mark

Compliance

USB 1.1/2.0 compliant

Data Bits

5, 6, 7, 8

Time

138,704 hrs

Operating temperature

0 to 55°C (32 to 131°F)

Safety

UL 60950-1

Power Consumption

130 mA @ 100 VAC

Baudrate

50 bps to 921.6 kbps (including 500 kbps)

RS-422

TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND

Linux Real TTY Drivers

Linux 2.4.x, 2.6.x, 3.x

Stop Bits

1, 1.5, 2

Altitude

Up to 2000 m

Windows Real COM Drivers

Windows 2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2012 (x64), Windows Embedded CE 5.0/6.0

EMC

CE, FCC

RS-232

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

FIFO

128 bytes

Database

MIL-HDBK-217F

Flow Control

RTS/CTS, XON/XOFF

EMI

EN 55022 Class A, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Subpart B Class A

RS-485-4w

TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND

EMS

EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11

Ambient Relative Humidity

5 to 95% (non-condensing)

Number of Ports

Storage temperature

-20 to 75°C (-4 to 167°F)

Connector

USB type B, DB9 male

Serial Standards

RS-232

Description

16 Port USB-to-Serial Hub, RS-232

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
