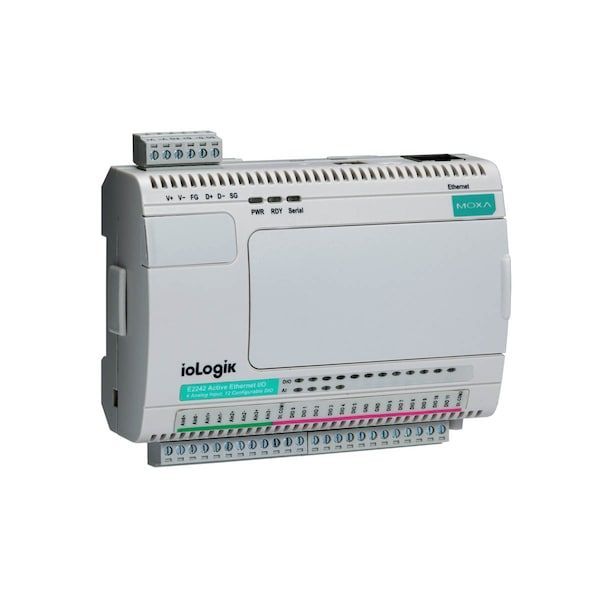

Active Ethernet I/O Server, 4Ai/12Dio

DIN rail or wall

Sink, Differential input

Voltage / Current, DI or event counter, DO or Pulse Output

1

24 VDC nominal, 12 to 36 VDC

900 Hz

None

200 mA per channel

1.5 kV magnetic isolation

178 mA @ 24 VDC

Modbus/TCP, TCP/IP, UDP, DHCP, BOOTP, SNMP, HTTP, CGI, SNTP, SMTP

IEC 60068-2-32

On: 0 to 3 VDC; Off: 10 to 30 VDC

EN 61000-4-2, EN 61000-4-3, EN 61000-4-4; EN 61000-4-5, EN 61000-4-6, EN 61000-4-8; EN 61000-4-11, EN 61000-6-2

5 to 95% (non-condensing)

Modbus/RTU

45 VDC

12 channels

Standard Models: -10 to 60°C (14 to 140°F); Wide Temp. Models: -40 to 75°C (-40 to 167°F)

1 10/100 Mbps RJ45 port

±150 mV, 0 to 150 mV, ±500 mV, 0 to 500 mV, ±5 V, 0 to 5 V, ±10 V, 0 to 10 V, 0 to 20 mA, 4 to 20 mA

On: short to GND; Off: Open

I/O cable max. 14 AWG

Up to 2000 m

Wet Contact (NPN or PNP) and Dry Contact

2.6 A (4 channels @ 650 mA)

Software selectable

All channels: 32 samples/sec; Per channel: 8 samples/sec; Single channel: 100 samples/sec

Telcordia (Bellcore)

16 bits

204,391 hrs

±0.1% FSR @ 25°C; ±0.3% FSR @ -10 and 60°C; ±0.5% FSR @ -40 and 75°C

175°C (min.)

IEC 60068-2-27

RS-485-2w: Data+, Data-, GND (3-contact terminal block)

1 kHz

6 points per COM

15 kV ESD for all signals

8

IEC 60068-2-6

1200 to 115200 bps

4 channels

EN 61000-3-2; EN 61000-3-3; EN 61000-6-4; FCC Part 15, Subpart B, Class A

3k VDC or 2k Vrms

120 ohms

200k ohms (min.)

UL 508

-40 to 85°C (-40 to 185°F)
