This item is Discontinued.

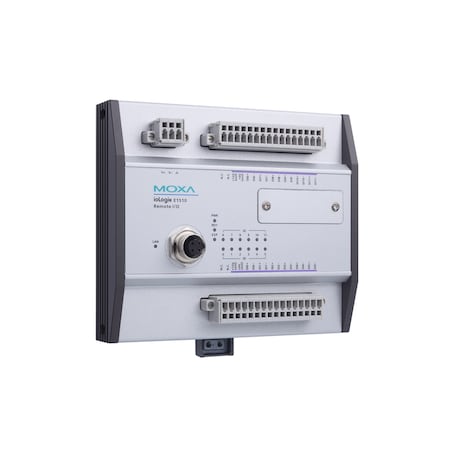

Moxa Ethernet Remote I/O, M12 Connector, 12 Dis, -40 To 85 Degrees C Operating ioLogik E1510-M12-T

Ethernet Remote I/O, M12 Connector, 12 Dis, -40 To 85 Degrees C Operating (Discontinued)

  • Mfr # ioLogik E1510-M12-T
  • Zoro # G4570014
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ioLogik E1510-M12-T
Zoro #
G4570014
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Dimensions
144 x 124 x 30 mm (5.67 x 4.88 x 1.18 in)

Details

Mounting
DIN rail (standard), wall (with optional kit)
Power Input
24 VDC nominal, 12 to 48 VDC
EMS
EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4; EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11; EN 61000-6-2
Dry Contact
On: short to GND; Off: open
Wet Contact (DI to GND)
On: 0 to 3 VDC; Off: 10 to 30 VDC
Operating temperature
-40 to 85°C (-40 to 185°F)
Wiring
I/O cable max. 14 AWG
Ambient Relative Humidity
5 to 95% (non-condensing)
Protocols
Modbus/TCP, TCP/IP, UDP, DHCP, BOOTP, HTTP
I/O Mode
DI or Event Counter
Altitude
Up to 2000 m
Rail Traffic
EN 50155*, EN 50121-3-2, EN 50121-4
Digital Inputs
12 channels (channel-to-channel isolation)
Protection
1.5 KV magnetic isolation
Digital Filtering Time Interval
Software Configurable; (minimum: 1 millisecond)
Vibration
IEC 60068-2-6
Power Consumption
163 mA @ 24 VDC
Safety
UL 508
Counter Frequency
250 Hz
Sensor Type
Wet Contact (NPN or PNP), Dry Contact
Shock
IEC 60068-2-27
EMI
EN 61000-3-2, EN 61000-3-3, EN 61000-6-4, FCC Part 15 Subpart B Class A
Isolation
3K VDC or 2K Vrms
Ethernet
1 10/100 Mbps, M12
Storage temperature
-40 to 85°C (-40 to 185°F)
Freefall
IEC 60068-2-32

Description

Ethernet remote I/O, M12 connector, 12 DIs, -40 to 85°C operating temperature.
