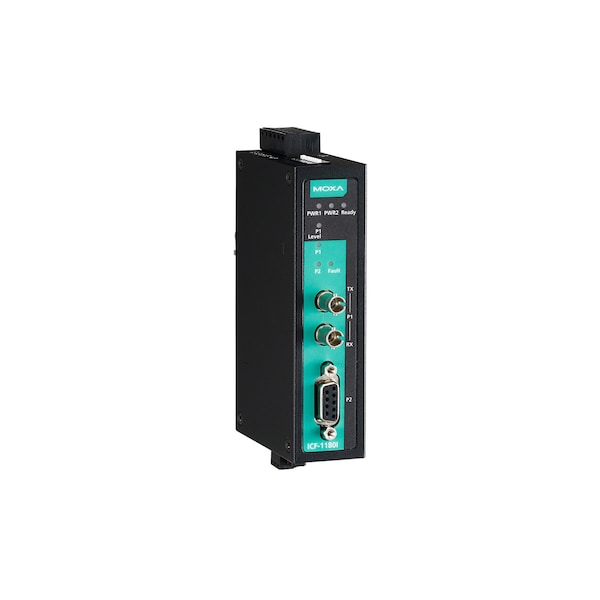

Indust. Profibus To Fiber Optic Converter, St Single-Mode

IEC 61158-2 for PROFIBUS DP

1.1 A

One relay output with current carrying capacity of 2 A @ 30 VDC (Normal open)

9.6, 19.2, 45.45, 93.75, 187.5, 500, 1500, 3000, 6000, and 12000 kbps

Metal

186 mA @ 12 V

5 to 95% (non-condensing)

2 kV

12 to 48 VDC

UL 508, EN 60950-1

-40 to 75°C (-40 to 167°F)

Yes

DIN-Rail mounting, wall mounting (with optional kit)

IEC 60068-2-32

CE, FCC Part 15 Subpart B Class A

Standard Models: 0 to 60°C (32 to 140°F); Wide Temp. Models: -40 to 75°C (-40 to 167°F)

EN 61000-4-2 (ESD) Level 3; EN 61000-4-3 (RS) Level 3; EN 61000-4-4 (EFT) Level 3; EN 61000-4-5 (Power Surge) Level 3; EN 61000-4-5 (Communication Surge) Level 3; EN 61000-4-6 (CS) Level 3

PROFIBUS DP (DB9 female)

Level 3 (2 kV) Surge Protection

EN 55022, Class A; EN 55024

Terminal Block

ST optical fiber

DIP 1 to 4: Baudrate setting; DIP 5: Fiber link monitor; DIP 6: Fiber inverse function; DIP 7: Reserved; DIP 8: Fiber cable test function

PWR1, PWR2, Ready, P1 Status, P2 Status
