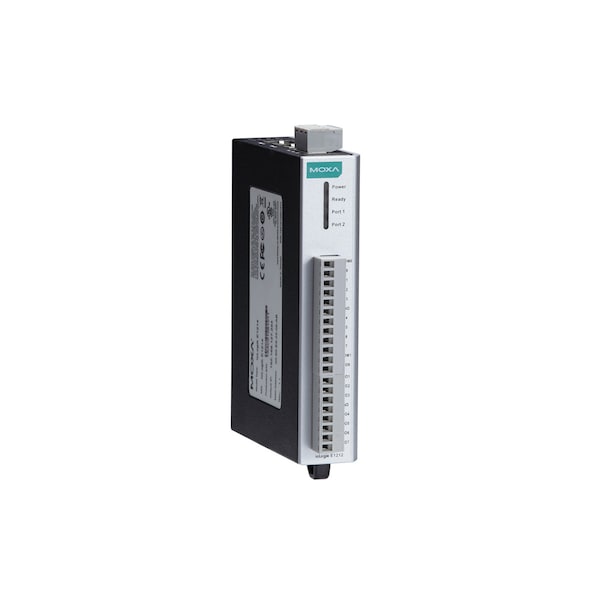

Moxa Remote Ethernet I/O, 16Do, 2Port Switch ioLogik E1211 - main

Remote Ethernet I/O, 16Do, 2Port Switch

  • Mfr # ioLogik E1211

  • Zoro # G4577440

product price: $285.99
/ea
Free Shipping & Returns

Key Features

Mounting
DIN rail or wall
Type
Sink
Vibration
IEC 60068-2-6
Ambient Relative Humidity
5 to 95% (non-condensing)
I/O Mode
DO or Pulse Output
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ioLogik E1211
Zoro #
G4577440
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Dimensions
27.8 x 124 x 84 mm (1.09 x 4.88 x 3.31 in)

Details

Mounting
DIN rail or wall
Type
Sink
Vibration
IEC 60068-2-6
Ambient Relative Humidity
5 to 95% (non-condensing)
I/O Mode
DO or Pulse Output
Over-voltage Protection
45 VDC
Protocols
Modbus/TCP, TCP/IP, UDP, DHCP, BOOTP, HTTP
EMI
EN 55022; EN 61000-3-2; EN 61000-3-3; FCC Part 15, Subpart B, Class A
Storage temperature
-40 to 85°C (-40 to 185°F)
EMS
EN 55024, EN 61000-4-2, EN 61000-4-3; EN 61000-4-4, EN 61000-4-5, EN 61000-4-6; EN 61000-4-8, EN 61000-4-11
Over-current Protection
2.6 A (4 channels @ 650 mA)
Current Rating
200 mA per channel
Wiring
I/O cable max. 14 AWG
Database
Telcordia (Bellcore)
Over-temperature Shutdown
175°C (typical), 150°C (min.)
Altitude
Up to 2000 m
Operating temperature
Standard Models: -10 to 60°C (14 to 140°F); Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Freefall
IEC 60068-2-32
Power Input
24 VDC nominal, 12 to 36 VDC
Isolation
3k VDC or 2k Vrms
Time
923,027 hrs
Digital Outputs
16 channels
Pulse Output Frequency
500 Hz
Shock
IEC 60068-2-27
Power Consumption
208 mA @ 24 VDC
Hazardous Location
UL/cUL Class I Diision 2, ATEX Zone 2
Safety
UL 508
Protection
1.5 kV magnetic isolation
Ethernet
2 switched 10/100 Mbps RJ45 ports

Description

Remote Ethernet I/O, 16DO, 2-port Switch

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
