Contact our U.S. based teamSpecifications
Product Information
MFR #
TCC-82
Zoro #
G4572279
UPC #
-
Country of Origin
Taiwan, Province of China
Dimensions
Dimensions
42 x 80 x 23.6 mm (1.65 x 3.15 x 0.93 in)
Details
Signals
RS-232: TxD, RxD, RTS, CTS, GND; (Loop-back wiring: DTR to DSR and DCD)
Safety
UL 60950-1
Baudrate
50 bps to 921.6 kbps
Connectors
DB9 male and DB9 female
ESD Protection
15 kV for all signals
Storage temperature
-20 to 75°C (-4 to 167°F)
Ambient Relative Humidity
5 to 95% (non-condensing)
EMC
CE, FCC
Optical Isolation
4 kV for 1 minute
Power Consumption
20 mA @ 5 V
Database
MIL-HDBK-217F
Time
959,780 hrs
EMI
FCC Part 15 Subpart B Class B
Input Voltage
5 to 12 VDC
Housing
ABS
Source of Input Power
RS-232 port (TxD, RTS, DTR) or power input jack
EMS
EN 61000-4-2 (ESD) Level 2; EN 61000-4-3 (RS) Level 2; EN 61000-4-4 (EFT) Level 2; EN 61000-4-5 (Surge) Level 2; EN 61000-4-6 (CS) Level 2; EN 61000-4-8 (SFMF) Level 1
Operating temperature
0 to 60°C (32 to 140°F)
Description

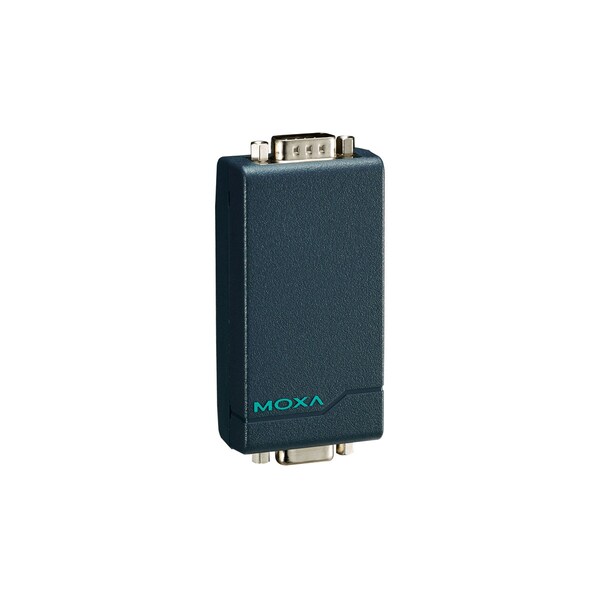

RS-232 Isolator. Port Powered, 4KV Isolation.
