  11. Rs-485 Remote I/O, 16 Dis, -10 To 75 Deg.C Operating Temperature.
This item is Discontinued.

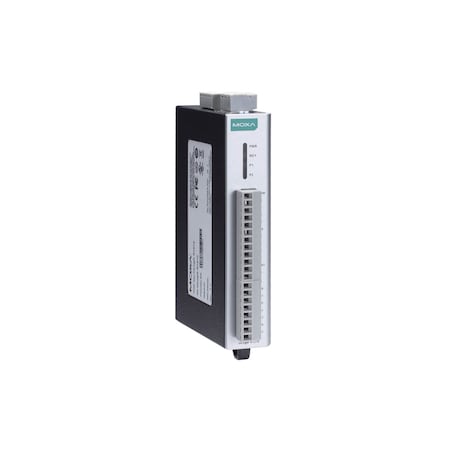

Moxa Rs-485 Remote I/O, 16 Dis, -10 To 75 Deg.C Operating Temperature. ioLogik R1210

Rs-485 Remote I/O, 16 Dis, -10 To 75 Deg.C Operating Temperature. (Discontinued)

  • Mfr # ioLogik R1210
  • Zoro # G4575508
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ioLogik R1210
Zoro #
G4575508
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Dimensions
27.8 x 124 x 84 mm (1.09 x 4.88 x 3.31 in)

Details

Parity
None, Even, Odd (default = None)
Counter Frequency
2.5 kHz
EMS
EN 55024, EN 61000-4-2 (ESD) Level 3, EN 61000-4-5 (Surge) Level 2; IEC 61000-4, IEC 61000-6
Interface
RS-485-2w: Data+, Data-, GND (5-contact terminal block for two serial port)
Stop Bits
1, 2 (default = 1)
Common Type
8 points per COM
Data Bits
8
Ambient Relative Humidity
5 to 95% (non-condensing)
Protocols
Modbus RTU
Shock
IEC 60068-2-27
Power Consumption
154 mA @ 24 VDC
Storage temperature
-40 to 85°C (-40 to 185°F)
Operating temperature
Standard Models: -10 to 75°C (14 to 167°F); Wide Temp. Models: -40 to 85°C (-40 to 185°F)
Digital Filtering Time Interval
Software Configurable
Digital Inputs
16 channels
High/Low Resistor for RS-485
1 kΩ, 150 kΩ
I/O Mode
DI or Event Counter
Serial Line Protection
ESD Protection: 15 kV; Surge Protection: 1 kV
Dry Contact
On: short to GND; Off: open
Freefall
IEC 60068-2-32
Sensor Type
Wet Contact (NPN or PNP), Dry Contact
Wiring
I/O cable max. 16 AWG
Safety
UL 508
Wet Contact (DI to COM)
On: 10 to 30 VDC; Off: 0 to 3 VDC
Vibration
IEC 60068-2-6
Baudrate
1200 to 921.6 kbps (default = 9600)
Isolation
3k VDC or 2k Vrms
EMI
EN 55022, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Subpart B Class A

Description

RS-485 remote I/O, 16 DIs, -10 to 75°C operating temperature.
