  11. Smart Remote I/O W/ 8 Dis, 8 Dios, Iologik 2512

This item is Discontinued.

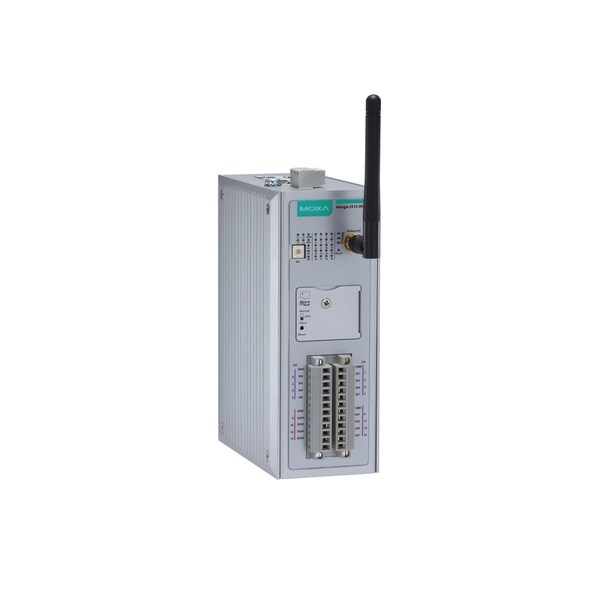

Moxa Smart Remote I/O W/ 8 Dis, 8 Dios, Iologik 2512 ioLogik 2512

Smart Remote I/O W/ 8 Dis, 8 Dios, Iologik 2512 (Discontinued)

  • Mfr # ioLogik 2512
  • Zoro # G4583226
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ioLogik 2512
Zoro #
G4583226
UPC #
-
Country of Origin
Taiwan, Province of China

Details

Mounting
DIN rail, wall
Wet Contact (DI to COM)
On: 10 to 30 VDC; Off: 0 to 3 VDC
Digital Inputs
8 channels
EMS
EN 55024, EN 61000-4-2, EN 61000-4-3,EN 61000-4-4, EN 61000-4-5, EN 61000-4-6; EN 61000-4-8, EN 61000-4-11, EN 61000-6-2
Operating temperature
Standard Models: -10 to 60°C (14 to 140°F); Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Dry Contact
On: short to GND; Off: open
Serial Ports
2, RJ45, 3-in-1 interface
Wiring
I/O cable max. 14 AWG
Over-current Protection
1.5 A per channel @ 25°C
Type
Sink
Input Leakage Current
< 1 mA (@ 30 VDC)
Expansion Slot
Up to 32 GB microSD™ memory card (SDHC compatible)
Ethernet
4 switched 10/100 Mbps RJ45 ports; 1 optimized port for faster downstream communications with daisy-chained ioLogik E1200 units
Data Bits
5, 6, 7, 8
Current Rating
500 mA per channel @ 25°C
Vibration
IEC 60068-2-6
Freefall
IEC 60068-2-32
Over-temperature Shutdown
175°C (min.)
Protocols
Modbus/RTU (master), serial tunnel mode (client/server), Modbus/TCP, TCP/IP, UDP, DHCP, BOOTP, SNMP, HTTP, CGI, SNTP, SMTP
Safety
UL 508, EN 60950-1, NCC
Common Type
8 points per COM
Configurable DI/Os
8 channels
Radio
FCC Part 22H, FCC Part 24E,EN 301 489-1, EN 301 489-7, EN 301 511
Storage temperature
-40 to 85°C (-40 to 185°F)
I/O Mode
DO or Pulse Output, DI or Event Counter
Power Input
24 VDC nominal, 9 to 48 VDC
Isolation
3k VDC or 2k Vrms
Baudrate
1200 to 115200 bps
Over-voltage Protection
45 VDC
Digital Filtering Time Interval
Software configurable
Flow Control
None, RTS/CTS
Counter Frequency
2.5 kHz
Stop Bits
1, 1.5, 2
Altitude
Up to 2000 m
Protocol
Modbus/RTU
Ambient Relative Humidity
5 to 95% (non-condensing)
Serial Line Protection
≥ 8 kV ESD for all signals
Pulse Output Frequency
5 kHz
EMI
EN 55022; EN 61000-3-2; EN 61000-3-3; FCC Part 15, Subpart B, Class A
Parity
None, Odd, Even
Shock
IEC 60068-2-27
Sensor Type
Wet Contact (NPN or PNP) and Dry Contact
Protection
1.5 kV magnetic isolation

Description

Smart Remote I/O with 8 DIs, 8 DIOs
