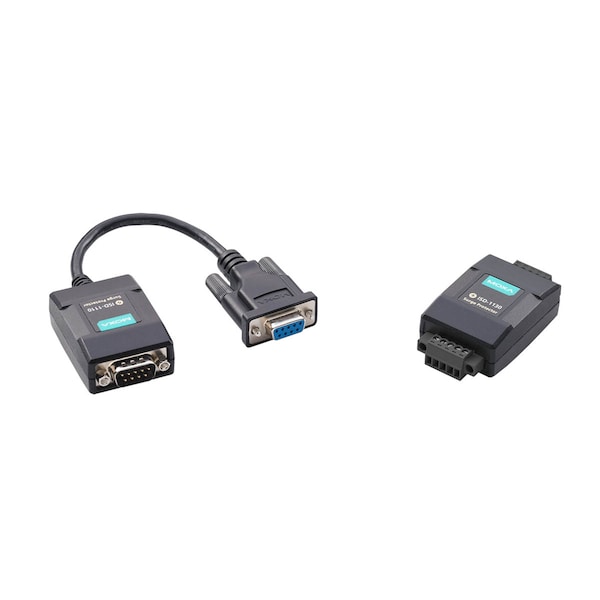

Surge Prtctr Data Line Surge Prtctr Indst Surge Prtctr, Isd-1130-T (Discontinued)
- Mfr # ISD-1130-T
- Zoro # G4583445
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
ISD-1130-T
Zoro #
G4583445
UPC #
-
Country of Origin
Taiwan, Province of China
Dimensions
Length
2.01 in
Depth
0.81 in
Width
1.46 in
BandWidth
10 MHz loss < 1 dB
Details
Item
Surge Protection Device
Response Time
< 1 ns
ISD-1130-T
Data in: Terminal block; Data out: Terminal block
Number of Protected Lines
ISD-1110-T: 7; ISD-1130-T: 4
Surge Capacity
4 kV, 8/20μs impulse per line
Altitude
Up to 2000 m
Protection Mode
Line to line, line to ground
EMS
EN 61000-4-5 Level 4 (4 kV))
Protection Rating
IP30
Ambient Relative Humidity
95% max, non-condensing
Housing
Plastic
Storage temperature
-40 to 85°C (-40 to 185°F)
Maximum Power Protection
400 watts
Operating temperature
-40 to 85°C (-40 to 185°F)
ISD-1110-T
Data in: DB9 male; Data out: DB9 female
Maximum Load Current
ISD-1110-T: 0.1 A (23°C), 0.05 A (85°C); ISD-1130-T: 0.12 A (23°C), 0.07 A (85°C)
Working Voltage
ISD-1110-T: 15 V; ISD-1130-T: 5 V
Description
Surge Protector Data Line Surge Protector industrial Surge Protector Device
