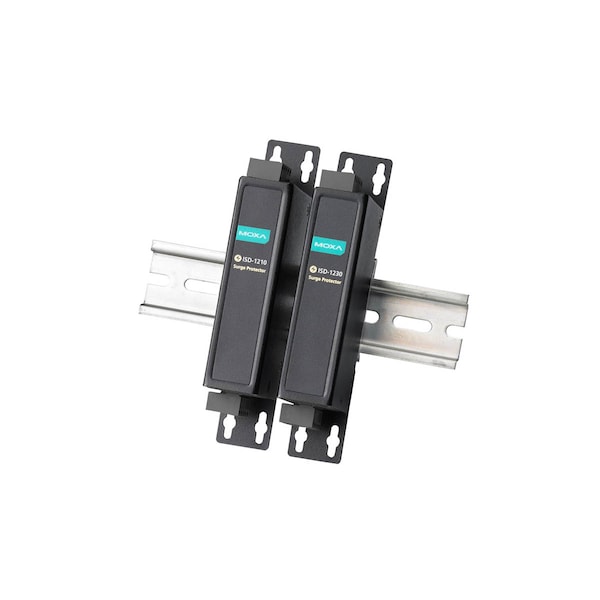

Surge Prtctr Data Line Surge Prtctr Indst Surge Prtctr, Isd-1230-T (Discontinued)
- Mfr # ISD-1230-T
- Zoro # G4579979
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
ISD-1230-T
Zoro #
G4579979
UPC #
-
Country of Origin
Taiwan, Province of China
Dimensions
Length
3.74 in
Depth
0.98 in
Width
2.01 in
BandWidth
10 MHz loss < 1 dB
Details
Item
Surge Protection Device
Operating temperature
-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
95% max, non-condensing
EMS
IEC 61643-21 C2 (20 kV 1.2/50, 10 kA 8/20)
Maximum Load Current
0.4 A (20°C), 0.13 A (85°C)
Protection Rating
IP30
Response Time
< 1 ns
Working Voltage
1210-T: 15 V; 1230-T: 5 V
Protection Mode
Line to line, line to ground
Altitude
Up to 2000 m
Storage temperature
-40 to 85°C (-40 to 185°F)
Number of Protected Lines
4
Maximum Power Protection
5000 watts
Surge Capacity
20 kV, 8/20μs impulse per line
ISD-1210-T/1230-T
Data in: Terminal block; Data out: Terminal block
Housing
Metal
Description
Surge Protector Data Line Surge Protector industrial Surge Protector Device
