Mrc

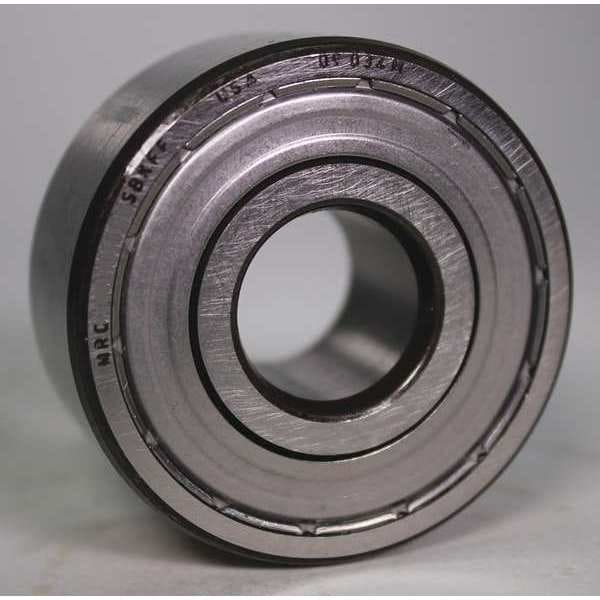

Bearing, 17mm, 14,300 N, Double Shield

product price: $74.65
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Contact Angle (Degree) 30 Degrees
  • Bore Dia. 17 mm
  • Outside Dia. 40 mm
  • Width 17.47 mm
  • Cage Material Thermoplastic
See all product information

Product Information

Dimensions

Bore Dia. 17 mm
Outside Dia. 40 mm
Width 17.47 mm
Overall Width 17.5 mm
Bore Diameter 17 mm
Housing Fillet Radius 0.64 mm
Outside Diameter 40 mm

Details

Item Angular Contact Ball Bearing
Contact Angle (Degree) 30 Degrees
Cage Material Thermoplastic
Type Double Row Double Shield
Temp. Range (F) 0 Degrees to 257 Degrees
Max. RPM 15,000 RPM
Static Load Capacity (N) 8,800 N
Dynamic Load Capacity (Lb.) 3,210 lb
Lubrication Exxon Polyrex
Dynamic Load Capacity (N) 14,300 N
ABEC Tolerance 1
Static Load Capacity (Lb.) 1,980 lb
Dynamic Radial Load Capacity 14,300 N
Number of Rows Two
Ring Material Alloy Steel
Contact Bearing Type Angular Contact
Maximum Speed 15,000 RPM
Minimum Temperature -20 Degrees C
System of Measurement Metric
Bearing Industry Number 3203/5203
Contact Angle 30 Degrees
Static Radial Load Capacity 8,800 N
Matched Bearing Type Not Matched/Single Bearing
Lubricant Material Polyrex
Ring Material Grade AISI 52100
Load Direction Radial
Closure Double Shielded
Maximum Temperature 125 Degrees C
ABEC Rating 1

Description

Angular Contact Ball Bearing, Bearing Industry Number 3203/5203, Bore Diameter 17 mm, Cage Material Polyamide, Closure Double Shielded, Contact Angle 30 Degrees , Contact Bearing Type Angular Contact, Lubricant Material Polyrex, Matched Bearing Type Not Matched/Single Bearing, Maximum Speed 15,000 RPM, Maximum Temperature 125 Degrees C, Minimum Temperature -20 Degrees C, Number of Rows Two, Outside Diameter 40 mm, Overall Width 17.5 mm, Ring Material Alloy Steel, System of Measurement Metric
