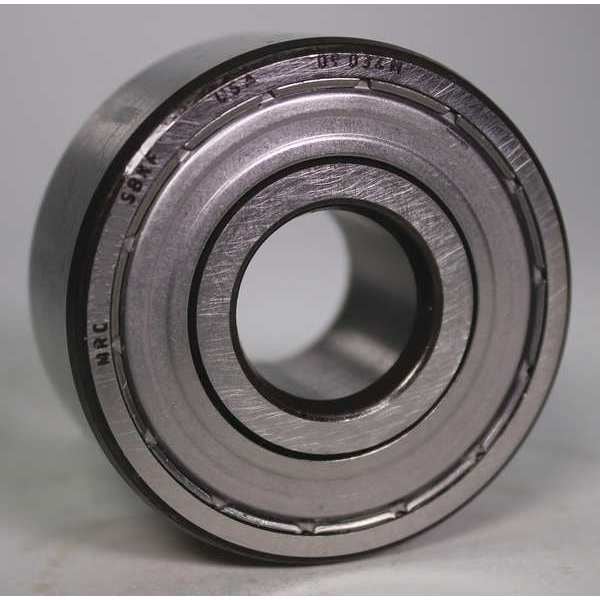

Bearing, 17mm, 14,300 N, Polyamide, Shielded

  • Mfr # 5203SBKF

  • Zoro # G0260989

product price:
$
125.99
/ea
Free Shipping & Returns

Key Features

Contact Angle (Degree)
30 Degrees
Bore Dia.
17 mm
Outside Dia.
40 mm
Width
17.47 mm
Cage Material
Nylon
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
5203SBKF
Zoro #
G0260989
UPC #
-
Country of Origin
Multiple
Item
Angular Contact Ball Bearing
Contact Angle (Degree)
30 Degrees
Cage Material
Nylon
Type
Double Row Shielded
Static Load Capacity (Lb.)
1,980 lb
ABEC Tolerance
1
Dynamic Load Capacity (Lb.)
3,210 lb
Static Load Capacity (N)
8,800 N
Dynamic Load Capacity (N)
14,300 N
Max. RPM
15,000 RPM
Temp. Range (F)
0 Degrees to 257 Degrees
Lubrication
Exxon Polyrex
Maximum Temperature
257 Degrees F
Minimum Temperature
-4 Degrees F
System of Measurement
Metric
Bearing Industry Number
3203/5203
Lubricant Material
Mobil Polyrex EM
Load Direction
Radial
Dynamic Radial Load Capacity
14,300 N
ABEC Rating
1
Closure
Single Shielded
Matched Bearing Type
Not Matched/Single Bearing
Static Radial Load Capacity
8,800 N
Number of Rows
Two
Ring Material
Alloy Steel
Maximum Speed
15,000 RPM
Ring Material Grade
AISI 52100
Contact Angle
30 Degrees
Contact Bearing Type
Angular Contact
Industry Number
3203/5203

Description

Angular Contact Ball Bearing, Bearing Industry Number 3203/5203, Bore Diameter 17 mm, Cage Material Nylon, Closure Single Shielded, Contact Angle 30 Degrees , Contact Bearing Type Angular Contact, Lubricant Material Mobil Polyrex EM, Matched Bearing Type Not Matched/Single Bearing, Maximum Speed 15,000 RPM, Maximum Temperature 257 Degrees F, Minimum Temperature -4 Degrees F, Number of Rows Two, Outside Diameter 40 mm, Overall Width 17.5 mm, Ring Material Alloy Steel, System of Measurement Metric
