Shop MSA SAFETY

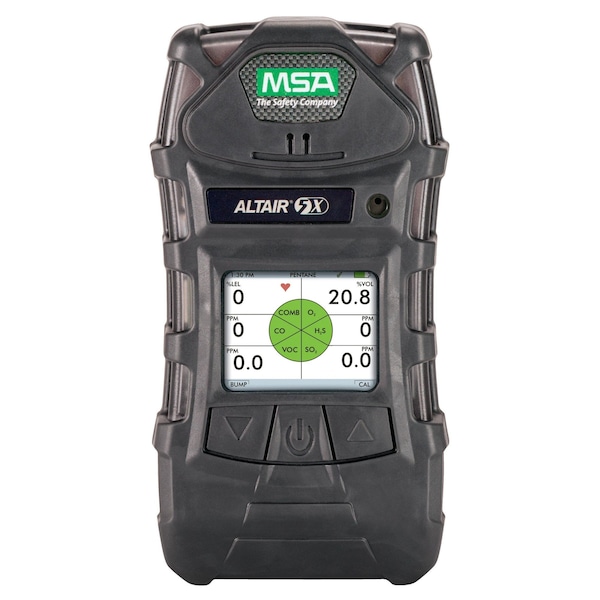

ALTAIR 5X Detector Color (LEL, O2, CO, H2S, PID), (UL, CSA), Charcoal, Instrument Only

  • Mfr # 10165445

  • Zoro # G1883220

product price:  $6,446.99
/ea
Free Shipping & Returns

Key Features

Gas Detected
Carbon Monoxide, Hydrogen Sulfide, LEL, Oxygen, VOC
Alarm Type
Audible, Vibrating, Visual
Alarm Setting
Carbon Monoxide (Alarm 1 - 25 ppm, Alarm 2 - 100 ppm), Hydrogen Sulfide (Alarm 1 - 10 ppm, Alarm 2 - 15 ppm), LEL (Alarm 1 - 10%, Alarm 2 - 20%), Oxygen (Alarm 1 - 19.5%, Alarm 2 - 23%)
Battery Life
13 hr
Operating Temp. Range
14 Degrees to 104 Degrees F (-10 Degrees to 40 Degrees C)
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
10165445
Zoro #
G1883220
UPC #
-
Country of Origin
United States

Dimensions

Height
6 45/64 in
Width
3 1/2 in
Overall Height
6.69 in
Manufacturer Warranty Length
3 yr
Overall Width
3.49 in
Overall Depth
1.79 in

Details

Item
Multi-Gas Detector
Gas Detected
Carbon Monoxide, Hydrogen Sulfide, LEL, Oxygen, VOC
Alarm Type
Audible, Vibrating, Visual
Alarm Setting
Carbon Monoxide (Alarm 1 - 25 ppm, Alarm 2 - 100 ppm), Hydrogen Sulfide (Alarm 1 - 10 ppm, Alarm 2 - 15 ppm), LEL (Alarm 1 - 10%, Alarm 2 - 20%), Oxygen (Alarm 1 - 19.5%, Alarm 2 - 23%)
Battery Life
13 hr
Operating Temp. Range
14 Degrees to 104 Degrees F (-10 Degrees to 40 Degrees C)
Standards
CSA Certified
Sensor Range
CO 0 to 2000 ppm, H2S 0 to 200 ppm, LEL 0 to 100%, O2 0 to 30%
IP Rating
IP65
Series
ALTAIR 5X
Display Screen Type
Monochrome
Chemical Formula
CO, H2S, LEL, O2, PID
Features
Bump Test in Less Than 15 sec for Most Common Sensor Configurations, Greater Signal Stability and Repeatability Under Changing or Extreme Environmental Conditions, Sensor Response and Clear Times in Less Than 15 sec for Most Common Sensor Configurations, Span Calibration Time of 60 sec for Most Common Sensor Configurations
PID Ionization Energy Level
10.6 eV
Resolution
1% LEL, Carbon Monoxide 1 ppm, Hydrogen Sulfide 1 ppm, Oxygen 1 ppm
Housing Color
Gray
Includes
Screwdriver
Power Source
Battery
Status Indicator
LED
Rechargeable Battery
Yes
Operating Temperature - Maximum
122 Degrees F
Includes Charger
Yes
Alert Type
Light, Sound, Vibration
Operating Temperature - Minimum
-40 Degrees F
Hazardous Location Specification
Class I, Div 1, Group A, B, C, D, Class II, Div 1, Group E, F, G, Class III, Div 1
Alarm Volume Level
95 dB
Replaceable Battery
Yes
Includes Probe
No
Sensor Life
3 yr
Display Type
Digital
Battery Chemistry
Lithium Ion
Measurement Range
Carbon Monoxide (0 to 2,000 ppm), Combustible LEL (0 to 100% LEL), Combustible LEL (0.5% vol), Hydrogen Sulfide (0 to 200 ppm), Oxygen (0 to 30% vol), PID (0 to 2,000 ppm)
Number of Gases Detected
5
Housing Material
Rubber
Sensor Type
Photo Ionization
Product Type
Multi-Gas Detector
Number of Sensors
4
Includes Test Gas
No
Sub-Brand
Altair
Sensors Included
Carbon Monoxide Sensor, Combustible LEL Sensor, Hydrogen Sulfide Sensor, Oxygen Sensor
Interchangeable Sensors
Yes
Power Source - TS Only
Battery

Description

Multi-Gas Detector, Replaceable Battery Yes, Product Type Multi-Gas Detector, Display Screen Type Monochrome, Includes Probe No, Housing Color Gray, Gas Detected Carbon Monoxide, Hydrogen Sulfide, LEL, Oxygen, VOC, Communication Protocol Not Applicable, Series ALTAIR 5X, Sub-Brand Altair, Status Indicator LED, Rechargeable Battery Yes, Sensor Type Photo Ionization

Restrictions

Hazardous material
