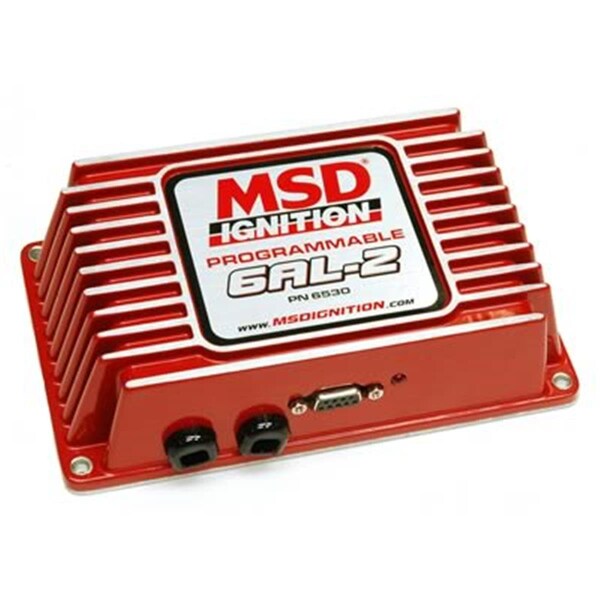

6530 6 Series Ignition Control Module

The programmable 6AL-2 ignition provides street and performance cars to take advantage of tuning-in an ignition curve or boost timing map from a PC. Also, using MSD's Pro-Data and software will provide simple adjustments to a 2 step rev limiter, step retard and more! The programmable 6AL-2 shares the same advanced features of the new 6AL-2 with 535 primary Volts and spark energy reaching 135 Milli Joules! Vibration mounts, wiring and a PC cable are supplied. Features Advanced PC Programming For Use On Street/Strip And Track Cars. PC Programmable With Easy To Use Windows Based Pro-Data And Software. Plot A Timing Curve Based On Boost Pressure Down To A 0.1 Degree Every 100 RPM. Program Three Rev Limits In 100 RPM Increments. Step Retard For Nitrous Applications Plus A Boost Timing Map. Capacitive Discharge Technology For High Voltage And Spark Energy. Color - Red. Circuitry - Digital. Spark Output ( Millijoules) - 135 Millijoules. Maximum Operating Voltage - 18 Volt. Minimum Operating Voltage - 12 Volt. Output - Capacitive Discharge. Current Draw - 0.7 Ampere Per 1000 RPM. CD Voltage Output To Coil ( V) - 535 Volt. REV Limiter - Yes.
