  9. Agricultural Exh Fan, 16 In, 120V, 2590 CFM
This item is Discontinued.

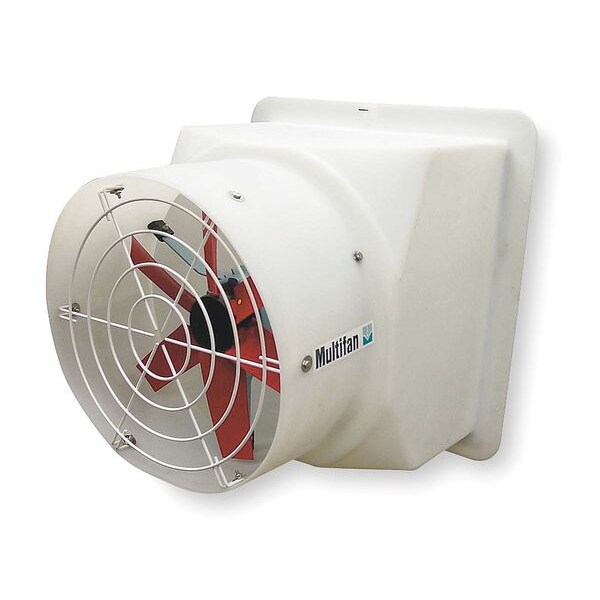

Multifan Agricultural Exh Fan, 16 In, 120V, 2590 CFM S4164E2

Agricultural Exh Fan, 16 In, 120V, 2590 CFM (Discontinued)

  • Mfr # S4164E2
  • Zoro # G2050395
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
S4164E2
Zoro #
G2050395
UPC #
-
Country of Origin
Netherlands

Dimensions

Propeller Dia. (In.)
16 in
Max. Depth (In.)
28 in
Width (In.)
26 in
Flange Width (In.)
2 1/2 in
Height (In.)
26 in
Overall Height
26 in
Overall Width
26 in
Flange Width
2 1/2 in
Manufacturer Warranty Length
3 yr
Blade Diameter
16 in
For Cut-Out Width
21 1/4 in
Overall Depth
28 in
For Cut-Out Height
21 1/4 in

Details

Item
Agricultural Exhaust Fan
Type
Direct Drive, Preassembled, Adjustable Speed
CFM @ 0.000-In. SP
2590
HP
1/4 hp
Voltage
120
Opening Required H (In.)
21 1/4 in
Opening Required W (In.)
21 1/4 in
Watts
230 W
CFM/Watt @ 0.150-In. SP
8.4
Motor Insulation
Class F
Frame Material
Polyethylene
Mounting Location
Wall
CFM/Watt @ 0.100-In. SP
2330/8.9
Bearing Type
Permanently Lubricated Sealed Ball
Motor Type
3-Phase
Motor Enclosure
Totally Enclosed Fan Cooled
CFM @ 0.040-In. SP
2,460
Fan RPM
1,600
Motor RPM
1600
CFM @ 0.150-In. SP
2180
Max. Ambient Temp. (F)
140 Degrees F
CFM @ 0.100-In. SP
2330
Hz
60
Full Load Amps
2.7
CFM/Watt @ 0.000-In. SP
2590/10
Includes
Housing, Wire Guard and Shutter
Number of Blades
6
CFM/Watt @ 0.040-In. SP
2460/9.5
Propeller Material
Polypropylene
Phase
1
Agency Compliance
CURUS
Standards
CSA Certified, CURUS
Drive Type
Direct Drive
Wattage
230 W
Ventilation Type
Exhaust
Number of Speeds
Variable
Assembled
Assembled
Blade Material
Polypropylene
Method of Construction
Cast
Fan Style
Shutter-Mounted
Housing Material
Aluminum
Speed Controllable
Yes
Exhaust Airflow @ 0.000 in SP
2,590 cfm
Exhaust Airflow @ 0.100 in SP
2,330 cfm
Full Load Current
2.7 A
Motor Speed
1,600 RPM
Motor Horsepower
1/4 hp
Frequency
60 Hz
Nameplate Voltage
120V AC
Includes Motor
Yes
Maximum Airflow
2,590 cfm
Maximum Ambient Operating Temperature
140 Degrees F

Description

Agricultural Exhaust Fan, Assembled Assembled, Blade Diameter 16 in, Blade Material Polypropylene, Drive Type Direct Drive, Exhaust Airflow @ 0.000 in SP 2,590 cfm, For Cut-Out Height 21 1/4 in, For Cut-Out Width 21 1/4 in, Frame Finish -, Frame Material Polyethylene, Housing Material Aluminum, Includes Housing, Wire Guard and Shutter, Maximum Airflow 2,590 cfm
