Shop MULTIFAN

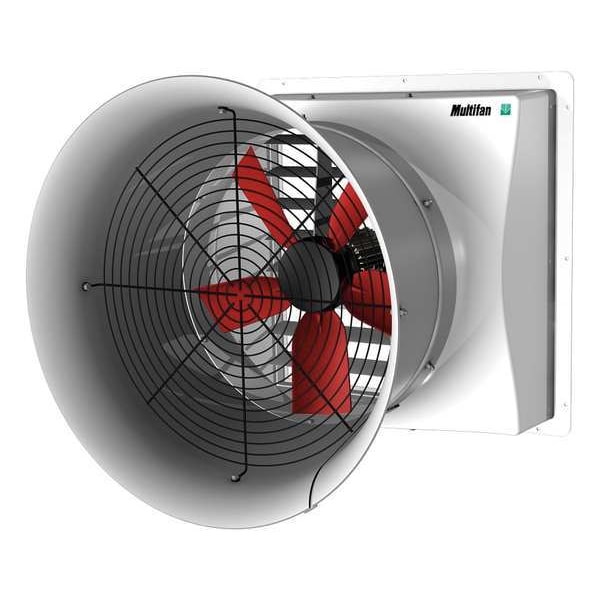

Agricultural Exhaust Fan, 240V, 21/32 HP

  • Mfr # C6E63K1M10338

  • Zoro # G9900073

product price:
$
1,811.99
/ea
Additional $100.00 delivery surcharge applies per item.
See details

Key Features

Type
Preassembled High Efficiency, Direct Drive, Cone
HP
2/3 hp
CFM @ 0.000-In. SP
7700
Flange Width (In.)
2 in
Motor Insulation
Class F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
C6E63K1M10338
Zoro #
G9900073
UPC #
-
Country of Origin
Netherlands
Type
Preassembled High Efficiency, Direct Drive, Cone
HP
2/3 hp
CFM @ 0.000-In. SP
7700
Motor Insulation
Class F
CFM/Watt @ 0.000-In. SP
11.7
Number of Blades
5
Propeller Material
Polypropylene
Full Load Amps
3 A
Watts
658 W
Bearing Type
Permanently Lubricated Sealed Ball
Fan RPM
1,085
Motor RPM
1085
Frame Finish
Polished
Motor Type
3-Phase
Mounting Location
Wall
CFM @ 0.050-In. SP
7530
Item
Agricultural Exhaust Fan
Opening Required W (In.)
30 3/4 in
Opening Required H (In.)
30 3/4 in
Frame Material
Fiberglass
Voltage
240
Includes
Cone, Exhaust Screen, Housing, Instructions, Intake Shutter
Phase
1
Motor Enclosure
Totally Enclosed Air Over
Max. Ambient Temp. (F)
104 Degrees F
CFM @ 0.150-In. SP
7040
CFM @ 0.100-In. SP
7320
Hz
60
Agency Compliance
BESS Labs, CURUS
Standards
BESS Labs, CURUS
Assembled
Unassembled
Includes Motor
Yes
Ventilation Type
Exhaust
Blade Material
Polypropylene
Nameplate Voltage
240V AC
Guard Finish
Smooth
Motor Horsepower
2/3 hp
Maximum Ambient Operating Temperature
104 Degrees F
Exhaust Airflow @ 0.125 in SP
1,353 cfm
Motor Speed
1,085 RPM
Exhaust Airflow @ 0.100 in SP
7,320 cfm
Exhaust Airflow @ 0.000 in SP
7,700 cfm

Description

Agricultural Exhaust Fan, Assembled Unassembled, Blade Diameter 24 in, Blade Material Polypropylene, Exhaust Airflow @ 0.000 in SP 7,700 cfm, For Cut-Out Height 30 3/4 in, For Cut-Out Width 30 3/4 in, Frame Finish Polished, Frame Material Fiberglass, Guard Finish Smooth, Includes Cone, Exhaust Screen, Housing, Instructions, Intake Shutter
