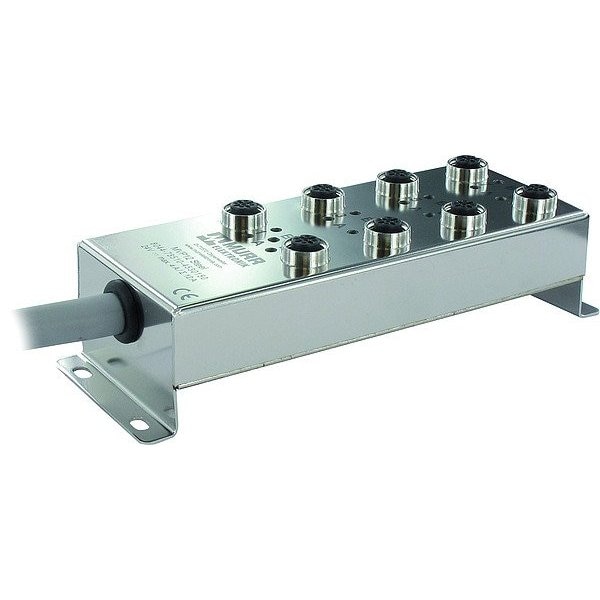

Distribution Box, 45 mm
Mfr # 8044-78510-4531000
Zoro # G715623911
product price:Â
$
786.99
/ea
Free Shipping & Returns
Key Features
IP Rating
IP65, IP67, IP68, IP69K
Maximum Voltage
24 V DC
Number of Poles
5
Features
Stainless Steel Housing, With Status LEDs
Connection Type
Free Cable End
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 8044-78510-4531000
- Zoro #
- G715623911
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Overall Height
- 45 mm
- Cable Length
- 10 m
- Overall Width
- 60 mm
- Overall Length
- 170 mm
- Thread Size
- M12
- Wire Size
- 16x0.5+3x1.0mm²
- Wire Rope Length
- 170 mm
- Length
- 170 mm
Details
- Item
- Distribution Box
- IP Rating
- IP65, IP67, IP68, IP69K
- Maximum Voltage
- 24 V DC
- Number of Poles
- 5
- Features
- Stainless Steel Housing, With Status LEDs
- Connection Type
- Free Cable End
- Resistance Properties
- Chemical Resistant, Flame Resistant, Oil Resistant
- Cable Jacket Color
- Gray
- Voltage Rating
- 24 V DC
- Current Rating per Port
- 4 A
- Cable Jacket Material
- TPE-V
- Standards
- CE, DIN EN 60811-404, IEC 60332-2-2, UL 1581 Section 1090, UL 1581 Section 1100 FT2
- Minimum Operating Temperature
- -30 Degrees C
- Connector Orientation
- Right Angle
- Gender
- Female
- Number of Ports
- 8
Description
Distribution Box, Cable Jacket Color Gray, Cable Jacket Material TPE-V, Cable Length 10 m, Connection Type Free Cable End, Connector Orientation Right Angle, Current Rating per Port 4 A, Features Stainless Steel Housing, With Status LEDs, Gender Female, IP Rating IP65, IP67, IP68, IP69K, Maximum Operating Temperature 80 Degrees C, Minimum Operating Temperature -30 Degrees C, Number of Poles 5, Number of Ports 8, Overall Height 45 mm, Overall Length 170 mm, Overall Width 60 mm
