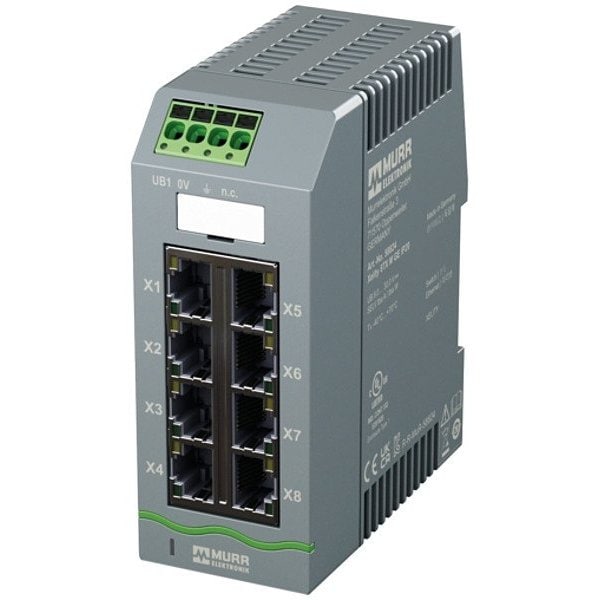

Ethernet Switch, IP20,1000 mbps

Mfr # 58825
Zoro # G522823740

1,465.99

Free Shipping & Returns

Key Features

Overall Height

105 mm

Number of Ports

Fieldbus Type

Ethernet

Overall Depth

85 1/8 mm

Minimum Operating Temperature

-40 Degrees C

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 58825
Zoro #: G522823740
UPC #: -
Country of Origin: Germany

Dimensions

Overall Height: 105 mm
Overall Depth: 85 1/8 mm
Overall Width: 41 5/8 mm

Details

Number of Ports: 8
Fieldbus Type: Ethernet
Minimum Operating Temperature: -40 Degrees C
Power Consumption: 3.6 W
Power Connector Number of Poles: 4
Power Connector Gender: Female
Number of D-Coded Fieldbus Ports: 0
Network Interface: 1000 mbps, Ethernet, Gigabit
Maximum Input Voltage: 30V DC
Protocols Supported: DHCP, EtherNet/IP, LLDP, NTP, PROFINET, RMON, RSTP, SNMP, SSH
Series: Xelity
Switch Management: Managed
Standards: CE, cULus Listed, UKCA
Number of PoE Ports: 0
Maximum Operating Temperature: 75 Degrees C
Number of X-Coded Fieldbus Ports: 0
Port Gender: Female
Housing Material: Plastic
Product Type: Ethernet Switch
Item: Ethernet switch
Data Rate: 1,000 MBps
IP Rating: IP20
Port Type: RJ45
Remote Maintenance Supported: Remote Maintenance Supported
Features: Auto-Crossover, Auto-Negotiation

Description

Ethernet switch, Features Auto-Crossover, Auto-Negotiation, Port Type RJ45, IP Rating IP20, Mounting Location DIN Rail, Network Interface 1000 mbps, Ethernet, Gigabit, Number of Ports 8, Switch Management Managed, Maximum Input Voltage 30V DC, Maximum Operating Temperature 75 Degrees C, Minimum Operating Temperature -40 Degrees C, Overall Depth 85 1/8 mm, Overall Height 105 mm, Overall Width 41 5/8 mm, Standards CE, cULus Listed, UKCA
