  13. Automatic Door Bottom, 1/4 x 36 In, SS

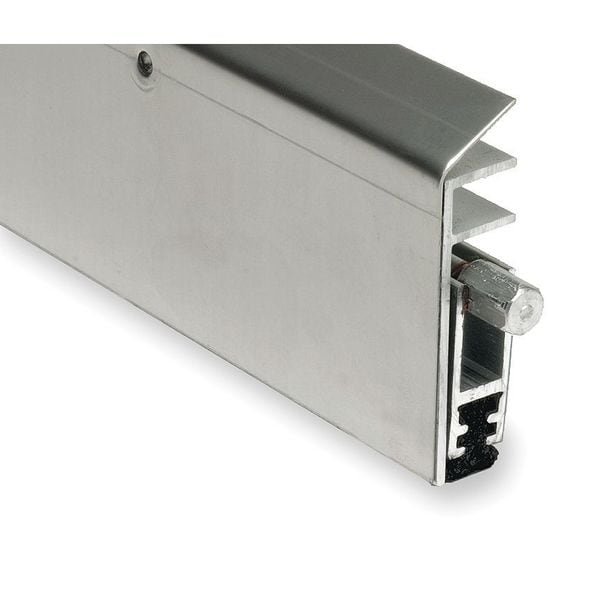

National Guard Automatic Door Bottom, 1/4 x 36 In, SS 229NSS-3 - main

Automatic Door Bottom, 1/4 x 36 In, SS

  • Mfr # 229NSS-3

  • Zoro # G2329573

product price: $103.99
/ea
Free Shipping & Returns

Key Features

Length
36 in
Color
Black
Width
1/4 in
Flange Finish
Brushed
Flange Thickness
0.625 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
229NSS-3
Zoro #
G2329573
UPC #
-
Country of Origin
United States

Dimensions

Length
36 in
Width
1/4 in
Flange Thickness
0.625 in
Flange Width
2-1/2"
Flange Height
2 1/2 in
Housing Thickness
0.03 in
Insert Size
7/8 in
Overall Length
36 in
Overall Width
2 1/2 in
Door Width - Maximum
36 in

Details

Color
Black
Flange Finish
Brushed
Drop Bar Material
Aluminum
Performance
Standard Duty
Housing Material
Stainless Steel
Flange Material
Stainless Steel
For Use With
36 in Wide Doors
Finish
Stainless steel
Hardware
Included
Insert Material
Neoprene
Item
Automatic Door Bottom
Standards
ANSI/BHMA A156.22, ANSI/BHMA, ASTM E283, BHMA, UL to ANSI and ANSI/UL1784 Category 'H' Complies with IBC and NFPA 105, UL to ANSI Complies with IBC NFPA 80 and NFPA 252, UL to CAN/ULC-S104 and ANSI Complies with NFPA 80 and NFPA 252
Projection
19/32 in
Insert Color
Black
Green Environmental Attribute
Applicable to LEED Criteria
Green Certification or Other Recognition
Environmental Transparency Through EPD (Environmental Product Declaration), Health Product Declaration Collaborative
Product Type
Door Bottom
Includes
#8 x 1- 1/4" Stainless Steel Sheet Metal Screws
UL Fire Rating
UL10B, UL10C
ANSI/BHMA Finish
Unfinished
Performance Grade
1
Features
Flame-Resistant, Moisture-Resistant, Mounts On Push Side of Door
Includes Hardware
Hardware Included
Sweep Type
Single Fin

Description

Automatic Door Bottom, Housing Material Stainless Steel, Includes #8 x 1- 1/4 In. Stainless Steel Sheet Metal Screws, Features Flame-Resistant, Moisture-Resistant, Mounts On Push Side of Door
