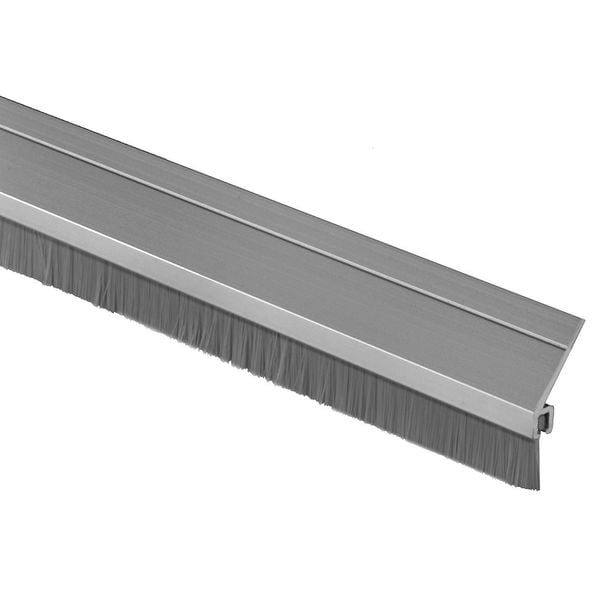

National Guard Door Frame Weatherstrip, 4 ft, Gray A626A-48 - main

Door Frame Weatherstrip, 4 ft, Gray

  • Mfr # A626A-48

  • Zoro # G0635713

product price: $15.79
/ea

Key Features

For Use With
48 in W Doors
Overall Length
4 ft
Projection
9/16 in
Product Type
Weatherstripping
Insert Color
Gray
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
A626A-48
Zoro #
G0635713
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
4 ft
Insert Size
7/16 in
Overall Height
1 3/16 in
Flange Height
3/4 in
Flange Thickness
0.063 in
Flange Width
3/4 in
Overall Width
1 1/4 in
Insert Size - Maximum
7/16 in

Details

For Use With
48 in W Doors
Projection
9/16 in
Item
Door Weatherstripping
Product Type
Weatherstripping
Insert Color
Gray
Insert Material
Nylon
Flange Material
Aluminum
Mounting Type
Surface
Standards
ANSI/BHMA A156.22, ASTM E2235, ASTM E283, ASTM E90, UL to ANSI, UL to ANSI and ANSI/UL1784, UL to CAN/ULC-S104 and ANSI Complies with NFPA 80 and NFPA 252
Includes
#6 x 3/4 in Stainless Steel Sheet Metal Screws
Flange Finish
Aluminum
Stays Flexible to
-70 Degrees to 425 Degrees F
Hardware
Included
Sold As
Strip
Insert Type
Brush
Max. Door Gap
1/8 in
Fire Rated
3 hr
Green Certification or Other Recognition
Environmental Transparency Through EPD (Environmental Product Declaration), Health Product Declaration Collaborative
Green Environmental Attribute
Applicable to LEED Criteria
UL Fire Rating
UL10B, UL10C
Includes Hardware
Hardware Included
Temperature - Maximum
425 Degrees F
Temperature - Minimum
-70 Degrees F
Gap - Maximum
1/8 in
Flange Projection
9/16 in

Description

Door Weatherstripping, Insert Type Brush, Insert Material Nylon, Insert Color Gray, Insert Size 7/16 in, Flange Material Aluminum, Flange Finish Aluminum, Flange Height 3/4 in, Flange Width 3/4 in, Flange Thickness 0.063 in, Overall Length 4 ft, Overall Width 1 1/4 in, Overall Height 1 3/16 in, Stays Flexible to -70 Degrees to 425 Degrees F, Projection 9/16 in, Mounting Type Screw In, Max. Door Gap 1/8 in, Fire Rated 3 hr, For Use With 48 in W Doors
