Shop NATIONAL GUARD

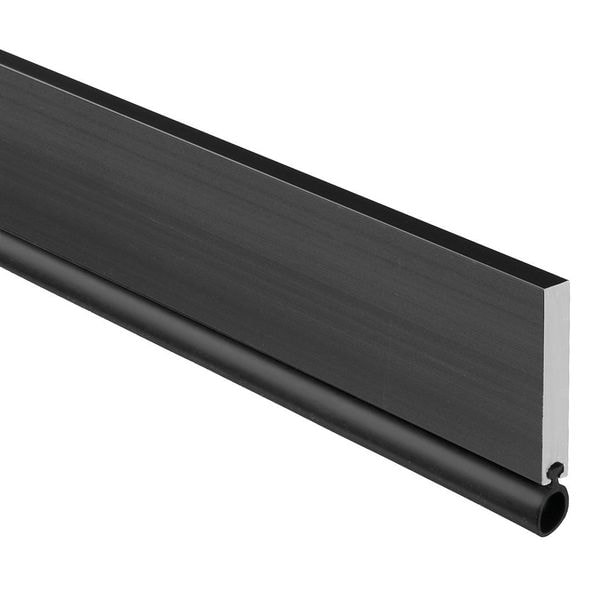

Door Frame Weatherstrip, 7 ft, Black

  • Mfr # 700NDKB-84

  • Zoro # G3247124

product price:
$
67.79
/ea

Key Features

For Use With
84 in H Doors
Overall Length
7 ft
Projection
1/4 in
Product Type
Weatherstripping
Insert Color
Black
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
700NDKB-84
Zoro #
G3247124
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
7 ft
Insert Size
3/16 in
Overall Height
1 13/16 in
Overall Width
1 11/16 in
Flange Width
1 1/2 in
Flange Height
1/4 in
Flange Thickness
0.25 in
Insert Size - Maximum
5/16 in
Wire Rope Length
7 ft
Length
7 ft

Details

For Use With
84 in H Doors
Projection
1/4 in
Item
Door Weatherstripping
Product Type
Weatherstripping
Insert Color
Black
Insert Material
Neoprene
Flange Material
Aluminum
Mounting Type
Surface
Standards
ANSI/BHMA A156.22, ASTM E2235, ASTM E283, ASTM E90, UL to ANSI, UL to ANSI and ANSI/UL1784, UL to CAN/ULC-S104 and ANSI Complies with NFPA 80 and NFPA 252
Sold As
Strip
Flange Finish
Dark Bronze
Hardware
Included
Stays Flexible to
-20 Degrees to 200 Degrees F
Insert Type
Bulb
Flange Color
Dark Bronze
Fire Rated
3 hr
Max. Door Gap
1/8 in
Includes
#8 (Tek Type) Self-Drilling Screws
Green Environmental Attribute
Applicable to LEED Criteria
Green Certification or Other Recognition
Environmental Transparency Through EPD (Environmental Product Declaration), Health Product Declaration Collaborative
UL Fire Rating
UL10B, UL10C
Includes Hardware
Hardware Included
Temperature - Minimum
-20 Degrees F
Gap - Maximum
1/8 in
Temperature - Maximum
200 Degrees F
Flange Projection
1/4 in

Description

Door Weatherstripping, Insert Type Bulb, Insert Material Neoprene, Insert Color Black, Insert Size 3/16 in, Flange Material Aluminum, Flange Color Dark Bronze, Flange Finish Dark Bronze, Flange Height 1/4 in, Flange Width 1 1/2 in, Flange Thickness 0.25 in, Overall Length 7 ft, Overall Width 1 11/16 in, Overall Height 1 13/16 in, Stays Flexible to -20 Degrees to 200 Degrees F, Projection 1/4 in, Mounting Type Screw In, Max. Door Gap 1/8 in, Fire Rated 3 hr, For Use With 84 in H Doors
