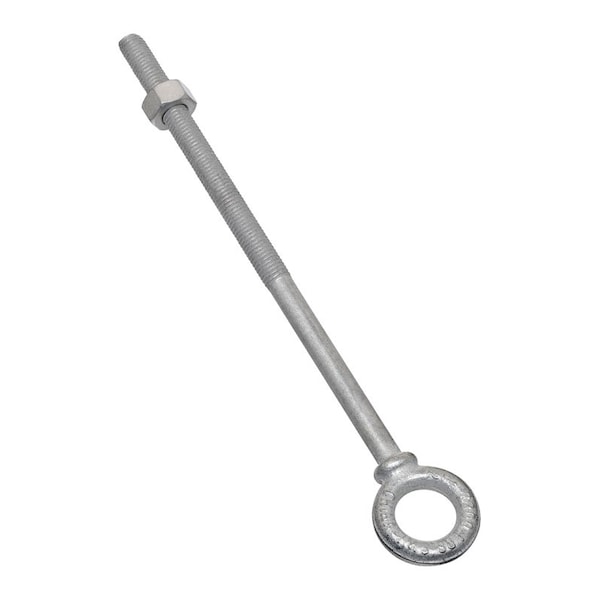

Eye Bolt With Shoulder, 1/2", 10 in Shank, 1 in ID, Steel, Galvanized
Mfr # N245-183
Zoro # G3988674
CAD Available
product price: $21.09
/eaKey Features
CAD Drawing
Shoulder Style
With Shoulder
System of Measurement
Inch
Thread Size
1/2"
Shank Length
10 in
Eye Inside Diameter
1 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
N245-183
Zoro #
G3988674
UPC #
38613245181
Country of Origin
China
Dimensions
Thread Size
1/2"
Shank Length
10 in
Eye Inside Diameter
1 in
Overall Length
10 in
Eye Outside Diameter
1.75 in
Details
CAD Available
Yes
Item
Eye Bolt
Shoulder Style
With Shoulder
System of Measurement
Inch
Material
Steel
Finish
Galvanized
Type
with Hex Nut
Includes Nut
Yes
Description
Designed for environments where high strength is required, the national hardware 1/2 inch x 10 inch galvanized steel eye bolt with hex nut features galvanized steel construction for strength and corrosion resistance. The eye bolt provides a shoulder for easy tightening and can be used in marine and agricultural applications.
- • Designed with shoulder so that it can be tightened in place
- • Bar code label is color coded to identify wire size
- • Pintle punched for 5/16 inch (1/2 inch size) or 3/8 inch (5/8 inch size) bolts
- • Superior strength (SWL) is clearly defined on label
- • Made of forged steel
- • WeatherGuard protection withstood these harsh conditions with very little deterioration
