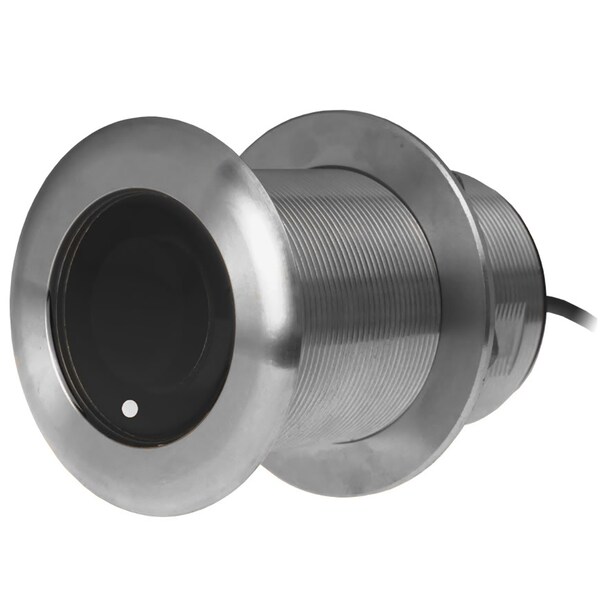

Xsonic Ss75H 12 Degree Tilted 600W 9 Pin 10M Cable (Discontinued)

XSONIC SS75H Depth/Temperature Transducer 12degrees - 9-Pin - 600W - 10M Cable. The SS75H is a Stainless Steel, thru-hull, tilted, high-frequency (130-210kHz), depth and temperature transducer. The ceramic element is tilted for built-in deadrise compensation, giving excellent echo returns for more accurate depth readings.. Features: CHIRP - CHIRP transducers enable bottom detection with 5 to 10 times greater detail and resolution so precise it' s possible to distinguish between individual baitfish, game fish, and underwater structures. Depth/Temperature - Calculates how deep the water is, so that you can avoid running aground, whilst also incorporating a temperature sensor for accurate water temperature readings. Easy To Install. High Frequency - CHIRP range is 130kHz-210kHz for good target detail in shallow water and excellent bottom tracking in deep water. Highly Accurate - Provides extremely accurate data.. 12degrees Tilt - The 12degrees tilt is ideal for boats with a 8degrees to 15degrees hull deadrise.. Low Profile - The low profile housing minimizes drag with just 5mm extending outside of the hull.. Plug & Play Connection - Easily connect to NSSevo3, Lowrance Specifications: Frequency: High CHIRP (130-210kHz). Power Rating: 600W. Speed Sensor: No. Temperature Sensor: Yes. Mounting Style: Bronze Thru-Hull. Elements: 1. Beamwidth @ -3dB: 15degrees to 9degrees.
