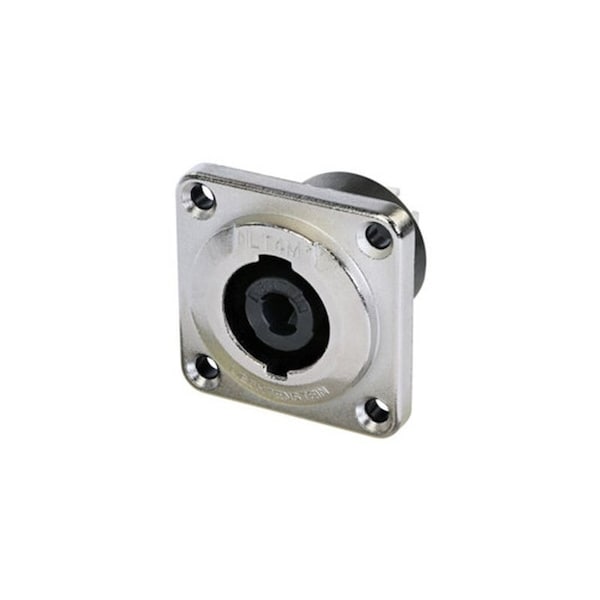

4 pole male chassis connector, metal housing, 1/4-in flat tabs, countersunk thru holes

This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 61984. The speakON STXX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STXX Series features an all metal housing. Gender male Electrical Contact resistance < 2 mO Dielectric strength 2.8 kVac Insulation resistance >0.1 GO after dampheat Rated current per contact 30 A rms continuous Rated voltage 250 V ac Attention speakON is NOT to be used as an AC mains or power supply connector! Mechanical Lifetime > 5000 mating cycles Termination 1/4-in flat tabs Locking device Quick Lock Mounting direction Rear / front mounting Chassis shape square G-size flange Layout four thru holes Material Contact plating Ag Contacts Copper Alloy Shell Zinc diecast, Ni plated Insert Polyamide PA 66 Environmental Temperature range -30 DegreesC to +80 DegreesC Flammability UL 94 V-0 Protection class IP 54 mated condition
