Nex Flow

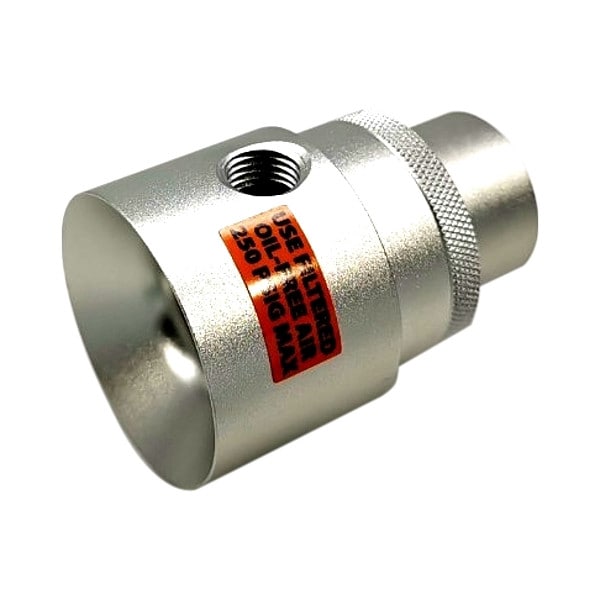

Air Amplifier

product price: $481.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Amplification Ratio 15
  • Discharge Dia. 1 1/4 in
  • Overall Length 2 7/8 in
  • Minimum Operating Pressure 20 psi
  • Flow Pattern Width at 6 Inches 2 3/8 in
See all product information

Product Information

Dimensions

Discharge Dia. 1 1/4 in
Overall Length 2 7/8 in
Flow Pattern Width at 6 Inches 2 3/8 in
Flow Pattern Width at 18 Inches 6 in
Overall Width 2 in
Flow Pattern Width at 12 Inches 4 3/16 in
Inlet Size 1/4 in
Overall Height 2 in
Inlet Diameter 1 15/16 in

Details

Item Air Amplifier
Amplification Ratio 15
Minimum Operating Pressure 20 psi
Output Type Adjustable
Air Consumption 14 scfm
Maximum Operating Pressure 120 psi
Body Material Stainless Steel
System of Measurement Inch
For Fluid Type Compressed Air
Product Type Air Amplifier Only
Air Inlet Type NPT
Maximum Sound Level 81 dBA
Air Output Volume @ 80 psi 188 scfm

Description

Air Amplifier, Amplification Ratio 15, Inlet Size 1/4 in, Air Inlet Type NPT, Inlet Diameter 1 15/16 in, Discharge Dia. 1 1/4 in, Maximum Sound Level 81 dBA, Body Material Stainless Steel, Air Consumption 14 scfm, Air Output Volume @ 80 psi 188 scfm, Output Type Adjustable, Includes Filter Separator Not Applicable, Includes Pressure Regulator Not Applicable, Includes Shims Not Applicable, System of Measurement Inch, Overall Length 2 7/8 in, Maximum Operating Pressure 120 psi
