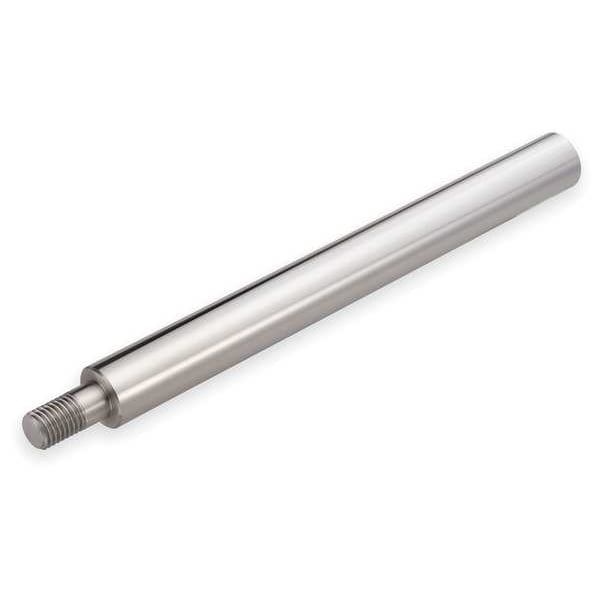

Linear Shaft, 3/4 in D, Carbon Steel
- Mfr # SFW12X5FS115
- Zoro # G1569601
product price:Â
$
37.15
/ea
Key Features
Shaft Dia.
3/4 in
Material
Carbon Steel
Dimension F
1 in
Min. Surface Hardness
60 RC
Dia. Tolerance Max.
0.7497 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- SFW12X5FS115
- Zoro #
- G1569601
- UPC #
- -
- Country of Origin
- Japan
- Item
- Linear Shaft
- Material
- Carbon Steel
- Min. Surface Hardness
- 60 RC
- For Use With
- Slide/Sleeve Bearing
- Type
- One End Threaded Shaft
- Temp. Range (F)
- 230 Degrees F
- System of Measurement
- Inch
- Surface Roughness
- 16 uin
- Series
- SFW
- Core Type
- Solid
- End Type
- One End Threaded
- Roughness
- 0.4 um Ra
- Shaft Type
- One End Threaded Shaft
- Operating Temperature - Maximum
- 230 Degrees F
- Surface Hardness - Minimum
- 60 HRC
- Tolerance Class
- g6
- Shell Material
- Carbon Steel
- Compatible Product Type
- Slide/Sleeve Bearing
- Traction Material
- Carbon Steel
Dimensions
- Shaft Dia.
- 3/4 in
- Length
- 5 in
- Dimension F
- 1 in
- Dia. Tolerance Max.
- 0.7497 in
- Mounting End Dia. (In.)
- 0.5 in
- Dia. Tolerance Min.
- 0.7492 in
- Dimension B
- 0.63 in
- Thread Length (In.)
- 0.63 in
- Thread Size
- 1/2"-13
- Travel Length (In.)
- 4 in
- Dimension M
- 1/2-13
- Dimension G
- 4.000
- Dimension P
- 0.5 in
- Dimension L
- 5
- Diameter Tolerance Class
- g6
- Diameter Tolerance - Maximum
- 0.75 in
- Diameter
- 3/4 in
- End Thread Length
- 0.63 in
- Diameter Tolerance - Minimum
- 0.749 in
- Overall Length
- 5 in
- End Thread Diameter
- 0.5 in
- End Thread Size
- 1/2-13
- Wire Rope Length
- 5 in
Description
Linear Shaft, System of Measurement Inch, Diameter 3/4 in, Shaft Type One End Threaded Shaft, End Type One End Threaded, Core Type Solid, Overall Length 5 in, Surface Hardness - Minimum 60 HRC, Material Carbon Steel, End Thread Size 1/2-13, Mounting Hole Thread Size Not Applicable, Diameter Tolerance - Minimum 0.749 in, Diameter Tolerance - Maximum 0.75 in, Mounting Hole Center to Center Not Applicable, Mounting Hole Center to Shaft End Not Applicable, End Thread Length 0.63 in
