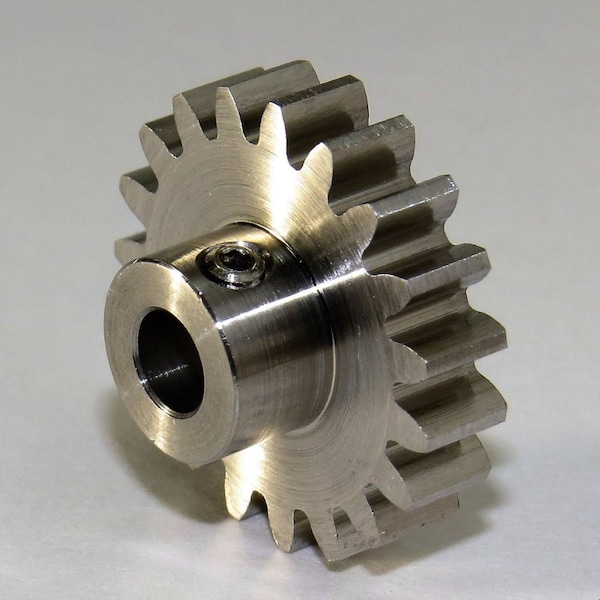

20 PITCH PIN HUB SPUR GEAR
Mfr # LAA-B3-25
Zoro # G515926878
product price:Â $52.99
/eaKey Features
Pitch Dia. (In.)
1.25 in
Face Width (In.)
0.1875 in
Number of Teeth
25
Bore Dia. (In.)
0.25 in
Outside Dia. (In.)
1.35 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
LAA-B3-25
Zoro #
G515926878
UPC #
-
Country of Origin
United States
Dimensions
Pitch Dia. (In.)
1.25 in
Face Width (In.)
0.1875 in
Bore Dia. (In.)
0.25 in
Outside Dia. (In.)
1.35 in
Hub Dia. (In.)
0.5 in
Overall Length (In.)
0.437 in
Set Screw Size
6-32
Details
Item
Spur Gear
Number of Teeth
25
Material
Aluminum
Set Screw Location
0.12 in
Pressure Angle (Deg.)
20
Description
Spur Gear-Pin Hub 20 Pitch. 20 degree pressure angle 6-32 set screw. AGMA Quality 10. Aluminum anodized before gear cutting.. Number of Teeth 25. Pitch Diameter 1.25000. Bore.24980. Face Width.18700. Outside Diameter 1.35000. Hub Diameter.50000. Over All Length.43700. Set Screw Location.12000. Material 2024-T4 Aluminum.
