This item is Discontinued.

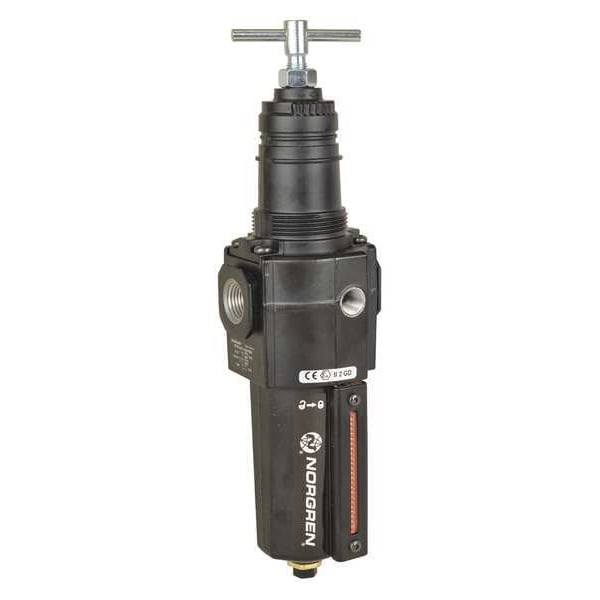

Norgren Filter/Regulator, 1/2in NPT, 250 psi B74G-4AT-AD3-RSN

Filter/Regulator, 1/2in NPT, 250 psi (Discontinued)

  • Mfr # B74G-4AT-AD3-RSN
  • Zoro # G0059005
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
B74G-4AT-AD3-RSN
Zoro #
G0059005
UPC #
746350357493
Country of Origin
Mexico

Dimensions

Size
1/2" HOSE
Bowl Size - Air Treatment
7.0 oz
Gauge Port Size
1/4 in
Connection Size - Air Treatment
1/2 in NPT
Size - Air Treatment
Compact
Pipe Size
1/2" NPT
Overall Width
3 1/8 in
Overall Height
11 3/8 in
Bowl Size
7.0 oz.
Pressure Gauge Port Size
1/4 in
Air Inlet Size
1/2 in
Air Outlet Size
1/2 in

Details

Item
Filter-Regulator
Max. Flow - Air Treatment
212 cfm
Max. Pressure
250 psi
Item - Filter-Regulators
Filter-Regulator
Adjustment Range - Air Treatment
10 to 250 psi
Max. Temp.
175 Degrees F
Drain Type
Automatic
Filter Rating - Air Treatment
40 micron
Max. Flow
212 cfm
Bowl Material
Metal
Max. Incoming Pressure - Air Treatment
250 psi
For Removal Of
Particles, Water
Adjustment Knob
T-Handle
Adjustment Range
10 to 250 psi
Filter Rating
40 micron
Bowl Material - Air Treatment
Metal
Maximum Operating Pressure
250 psi
Adjustment Mechanism
Knob
Air Outlet Type
PTF
Maximum Regulated Pressure
250 psi
Pressure Gauge Included
No
Filter Element Material
Polypropylene
Adjustment Mechanism Material
Polypropylene and TPV
Air Inlet Type
PTF
Filter Bowl Capacity
7 oz
Sight Gauge Included
No
Regulator Type
Relieving
Body Material
Aluminum
For Substance Type
Particles, Water
Drain Included
Yes
Maximum Operating Temperature
175 Degrees F
Minimum Operating Temperature
-30 Degrees F
For Fluid Type
Particles, Water
Filter Bowl Material
Metal
Modular Connection
Modular Connection
Minimum Regulated Pressure
10 psi
Maximum Flow Rate
212 cfm
Number of Air Inlets
1
Number of Air Outlets
1
Differential Pressure Indicator Included
No

Description

Filter-Regulator, Filter Bowl Material Metal, Air Inlet Size 1/2 in, Air Inlet Type PTF, Maximum Flow Rate 212 cfm, Filter Rating 40 micron, Maximum Operating Pressure 250 psi, Drain Type Automatic, Pressure Gauge Included No, Body Material Aluminum, Overall Width 3 1/8 in, Adjustment Mechanism Knob, Adjustment Mechanism Material Polypropylene and TPV, Air Outlet Size 1/2 in, Air Outlet Type PTF, Differential Pressure Indicator Included No, Drain Included Yes, Filter Bowl Capacity 7 oz
