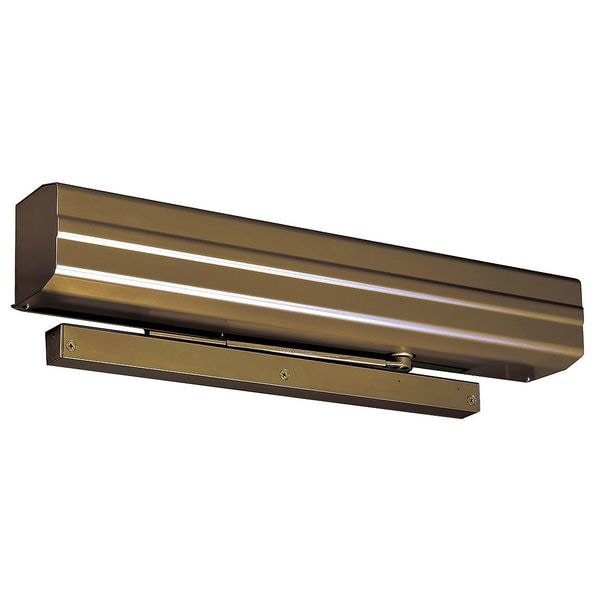

Norton Door Controls Automatic, Hydraulic, Norton 5700, Low Energy Operator, Heavy Duty Interior and Exterior 5710 XRF1 X 690 - main

Automatic, Hydraulic, Norton 5700, Low Energy Operator, Heavy Duty Interior and Exterior

  • Mfr # 5710 XRF1 X 690

  • Zoro # G2260894

product price:  $2,613.99
/ea
Free Shipping & Returns

Key Features

Closer Mounting Style
Regular
Closer Performance
Heavy Duty
Closer Series
Norton 5700
Closer Type
Electronically Controlled
Color
Dark Brown
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5710 XRF1 X 690
Zoro #
G2260894
UPC #
-
Country of Origin
United States

Dimensions

Housing Depth
4-5/8"
Housing Height
5-1/4"
Housing Length
29"
Spring Size
Adjustable 1 to 6
Exterior Door Width
48 in
Interior Door Width
54 in
Spring Size - Maximum
6
Length Between Mounting Holes
3/8 in, 7/8 in, 5 7/8 in, 7 9/16 in, 12 15/16 in
Height Between Mounting Holes
1/2 in
Interior Door Width - Maximum
54 in
Exterior Door Width - Maximum
48 in
Spring Size - Minimum
1

Details

Item
Low Energy Operator
Closer Mounting Style
Regular
Closer Performance
Heavy Duty
Closer Series
Norton 5700
Closer Type
Electronically Controlled
Color
Dark Brown
Finish
Dark Bronze Painted
Hand Orientation
Non-Handed
Interior/Exterior
Interior and Exterior
Hydraulic/Pneumatic
Hydraulic
Automatic/Manual
Automatic
Material
Cast Aluminum
ADA Compliant
Yes
Arm Type
Hinge (Pull) Side, Slide Track
Arm Material
Aluminum/Steel
Ligature Resistant
No
Max. Door Opening
180 Degrees
Projection from Wall
4 5/8 in
Standards
ANSI/BHMA A156.19; UL/cUL Listed; ADA Complaint
Includes
(2) Radio Frequency Wall Switches
Category Type
Regular Arm
Series
Norton 5711
Door Handing
Non-Handed
Type
Interior or Exterior Pull Side
Power Source
Electrical
Hand
Non-Handed
Mounting Style
Pull Side
Door Opening - Maximum
180 Degrees
ANSI/BHMA Finish
Dark Bronze Painted
Projection
4 5/8 in
Spring Type
Adjustable
Door Weight - Minimum
198 lb
Door Weight - Maximum
254 lb
Power Level
Low Energy
Fire Rating
Not Rated
Compatible Brand
Norton
Performance Grade
1
Operator Cycles
10,000,000
Ligature-Resistant
Not Ligature-Resistant
Stop Type
Spring
Interior/Exterior Use
Interior/Exterior

Description

Electric, Powered Door Operator, Heavy Duty Closer Performance, Hold Open, Door Handing Non-Handed, Arm Type Slide Track, Hinge (Pull) Side, Mounting Style Pull Side, Housing Length 29 In., Housing Width 4-5/8 In., Housing Height 5-1/4 In., Dark Bronze Finish, Max. Door Opening 180 Degrees , Exterior Door Width 48 In., Interior Door Width 54 In., Powered By 120 VAC, Projection from Wall 4-5/8 In., Spring Size Adjustable 1 to 6, Color Dark Bronze, Arm Material Aluminum/Steel
