  6. Automatic, Hydraulic, Norton 5700, Low Energy Operator, Heavy Duty Interior and Exterior, Gray

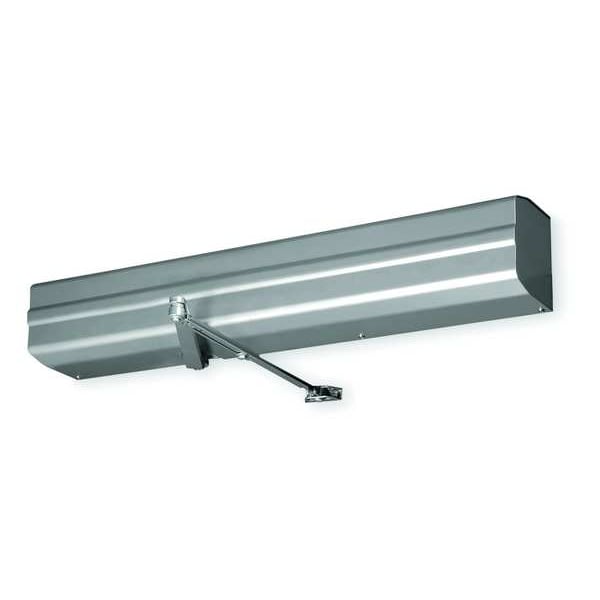

Norton Door Controls Automatic, Hydraulic, Norton 5700, Low Energy Operator, Heavy Duty Interior and Exterior, Gray 5730RFX689 531 - main

Automatic, Hydraulic, Norton 5700, Low Energy Operator, Heavy Duty Interior and Exterior, Gray

  • Mfr # 5730RFX689 531

  • Zoro # G0036057

product price:  $3,035.99
/ea
Free Shipping & Returns

Key Features

Closer Mounting Style
Push
Closer Performance
Heavy Duty
Closer Series
Norton 5700
Closer Type
Stop Arm
Color
Gray
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5730RFX689 531
Zoro #
G0036057
UPC #
-
Country of Origin
United States

Dimensions

Housing Depth
4-3/8"
Housing Height
5-1/4"
Housing Length
29"
Spring Size
Adjustable 1 to 6
Interior Door Width
48 in
Exterior Door Width
48 in
Exterior Door Width - Maximum
48 in
Height Between Mounting Holes
1/2 in
Spring Size - Minimum
1
Spring Size - Maximum
6
Length Between Mounting Holes
3/8 in, 7/8 in, 5 7/8 in, 7 9/16 in, 12 15/16 in
Interior Door Width - Maximum
48 in

Details

Item
Low Energy Operator
Closer Mounting Style
Push
Closer Performance
Heavy Duty
Closer Series
Norton 5700
Closer Type
Stop Arm
Color
Gray
Finish
Aluminum
Hand Orientation
Non-Handed
Interior/Exterior
Interior and Exterior
Hydraulic/Pneumatic
Hydraulic
Automatic/Manual
Automatic
Material
Cast Aluminum
Max. Door Opening
180 Degrees
Standards
ANSI/BHMA A156.19 Certified; ANSI/BHMA A156.4; UL/cUL Listed; ISO 9001 and ISO 14001 Certified; Americans with Disabilities Act (ADA)
Arm Material
Steel
Arm Type
Track
Includes
Radio Frequency Wall Switches
Ligature Resistant
No
ADA Compliant
Yes
Projection from Wall
4 5/8 in
Category Type
Regular Arm
Power Source
Electrical
Door Handing
Non-Handed
Series
Norton 5721
Hand
Non-Handed
Mounting Style
Slide Track, Push Side
ANSI/BHMA Finish
Aluminum Painted
Stop Type
Spring
Spring Type
Adjustable
Compatible Brand
Norton
Projection
4 5/8 in
Ligature-Resistant
Not Ligature-Resistant
Performance Grade
1
Door Weight - Minimum
198 lb
Power Level
Low Energy
Fire Rating
Not Rated
Operator Cycles
10,000,000
Interior/Exterior Use
Interior/Exterior
Door Opening - Maximum
180 Degrees
Door Weight - Maximum
254 lb

Description

Electric, Power Door Operator, Heavy Duty Closer Performance, Door Handing Non-Handed, Arm Type Slide Track, Stop (Push) Side, Mounting Style Pull Side, Housing Length 29 In., Housing Width 4-5/8 In., Housing Height 5-1/4 In., Aluminum Finish, Max. Door Opening 180 Degrees , Exterior Door Width 48 In., Interior Door Width 48 In., Powered By 120 VAC, Projection from Wall 4.625 In., Spring Size 1-6, Color Aluminum, Arm Material Steel, Includes Radio Frequency Wall Switches
