  11. Automatic, Hydraulic, Norton 5700, Low Energy Operator, Heavy Duty Interior and Exterior, Gray

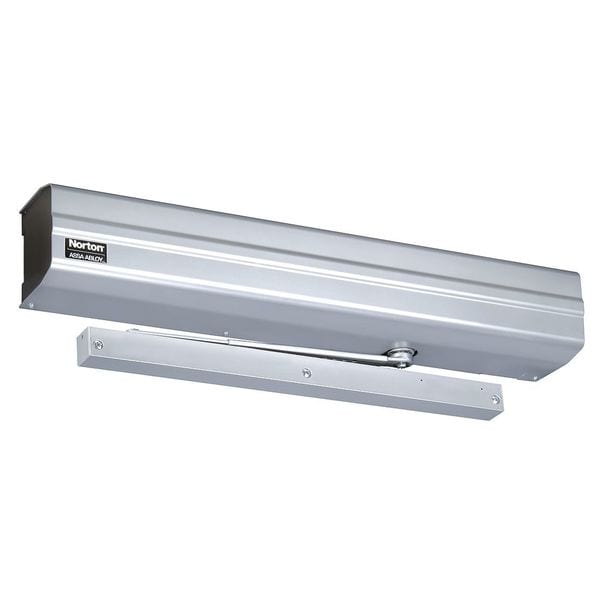

Norton Door Controls Automatic, Hydraulic, Norton 5700, Low Energy Operator, Heavy Duty Interior and Exterior, Gray 5740K2 - main

Automatic, Hydraulic, Norton 5700, Low Energy Operator, Heavy Duty Interior and Exterior, Gray

  • Mfr # 5740K2

  • Zoro # G5180524

product price: $3,178.57
/ea
Free Shipping & Returns

Key Features

Closer Mounting Style
Regular, Top Frame
Closer Performance
Heavy Duty
Closer Series
Norton 5700
Closer Type
Electronically Controlled
Color
Gray
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5740K2
Zoro #
G5180524
UPC #
094723637483
Country of Origin
United States

Dimensions

Housing Depth
4-5/8"
Housing Height
5-1/4"
Housing Length
29"
Spring Size
Adjustable 1 to 4
Interior Door Width
30 to 48 in
Exterior Door Width
30 to 48 in
Exterior Door Width - Maximum
48 in
Spring Size - Minimum
1
Interior Door Width - Maximum
48 in
Length Between Mounting Holes
1 3/4 in
Height Between Mounting Holes
1 3/4 in
Spring Size - Maximum
4

Details

Item
Low Energy Operator
Closer Mounting Style
Regular, Top Frame
Closer Performance
Heavy Duty
Closer Series
Norton 5700
Closer Type
Electronically Controlled
Color
Gray
Finish
Aluminum Painted
Hand Orientation
Non-Handed
Interior/Exterior
Interior and Exterior
Hydraulic/Pneumatic
Hydraulic
Automatic/Manual
Automatic
Material
Cast Aluminum
Max. Door Opening
Up to 180 Degrees
Standards
ANSI/BHMA A156.19; UL/cUL Listed; ADA Complaint
ADA Compliant
Yes
Ligature Resistant
No
Projection from Wall
4 5/8 in
Arm Type
Track
Includes
(2) 700 Touchless Switches, Power Cord, Push and Pull Arms
Category Type
Regular Arm
Power Source
Battery
Type
Nonhanded Closer
Series
Norton 5741
Door Handing
Non-Handed
Supports Touchless Operation
Yes
For Use With
Interior and Exterior Doors
Hand
Non-Handed
Mounting Style
Push or Pull Side Top Jamb
Supports Operation Type
Touchless Operation
Door Opening - Minimum
180 Degrees
Spring Type
Adjustable
Door Weight - Maximum
250 lb
Ligature-Resistant
Not Ligature-Resistant
Performance Grade
1
Stop Type
Spring
ANSI/BHMA Finish
Aluminum Painted
Fire Rating
Not Rated
Power Level
Low Energy
Door Opening - Maximum
180 Degrees
Projection
4 5/8 in
Interior/Exterior Use
Interior/Exterior
Compatible Brand
Norton
Door Weight - Minimum
40 lb
Operator Cycles
1,000,000

Description

Electric, Powered Door Operator, Heavy Duty Closer Performance, Hold Open, Door Handing Non-Handed, Arm Type Slide Track Pull Side, Double Lever Push Side, Mounting Style Push or Pull Side Top Jamb, Housing Length 29 In., Housing Width 4-5/8 In., Housing Height 5-1/4 In., Aluminum Finish, Max. Door Opening 180 Degrees Pull Side, 170 Degrees Push Side, Exterior Door Width 30 to 48 In., Interior Door Width 30 to 48 In., Projection from Wall 4-5/8 In., Spring Size Adjustable 1 to 4, Color Aluminum
