Shop NORTON DOOR CONTROLS

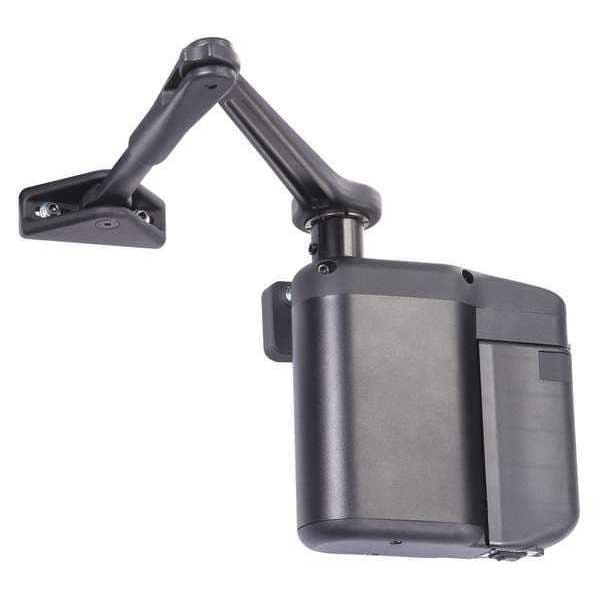

Automatic, Hydraulic, Norton 5800, Low Energy Power Operator, Heavy Duty Interior and Exterior

  • Mfr # 5845 x NPB x 689

  • Zoro # G4102561

product price:
$
3,336.99
/ea
Free Shipping & Returns

Key Features

Closer Mounting Style
Push and Pull
Closer Performance
Heavy Duty
Closer Series
Norton 5800
Closer Type
Electronically Controlled
Color
Black
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
5845 x NPB x 689
Zoro #
G4102561
UPC #
049306152082
Country of Origin
United States
Item
Low Energy Power Operator
Closer Mounting Style
Push and Pull
Closer Performance
Heavy Duty
Closer Series
Norton 5800
Closer Type
Electronically Controlled
Color
Black
Finish
Black and Aluminum
Hand Orientation
Non-Handed
Interior/Exterior
Interior and Exterior
Hydraulic/Pneumatic
Hydraulic
Automatic/Manual
Automatic
Material
Steel
Standards
ANSI/BHMA A156.19, ETL tested to UL/cUL Listed
Arm Type
Parallel, Regular
Projection from Wall
7 in
Includes
Narrow Stile Push Plates
Ligature Resistant
No
ADA Compliant
Yes
Max. Door Opening
95 Degrees
Mounting Hardware
Included
Arm Material
Steel
Category Type
Top Jamb
Series
5800
Power Source
Battery
Features
Functions Like Door Closer when Used Manually, Regenerative Drive Battery Captures Power Created by Manual Operation of Door, Shock Absorbing Arm
Door Handing
Non-Handed
For Use With
Interior and Exterior Doors
Mounting Style
Top Frame
Door Opening - Minimum
95 Degrees
Door Opening - Maximum
95 Degrees
Projection
7 in
Includes Hardware
Hardware Included
Door Weight - Maximum
250 lb
UL Fire Rating
UL10C
Operator Cycles
10,000,000
Power Level
Low Energy
ANSI/BHMA Finish
Aluminum Painted
Door Weight - Minimum
40 lb
Ligature-Resistant
Not Ligature-Resistant
Spring Type
Adjustable
Fire Rating
90 min
Interior/Exterior Use
Interior/Exterior
Compatible Brand
Norton
Performance Grade
1
Power Source - TS Only
Battery
Power Source - old
Battery

Description

Electric, Powered Door Operator, Heavy Duty Closer Performance, Electronically Controlled, Door Handing Non-Handed, Arm Type Regular, Parallel, Mounting Style Top Frame, Housing Length 8 In., Housing Width 2-1/2 In., Housing Height 9 In., Aluminum Finish, Max. Door Opening 95 Degrees , Exterior Door Width 48 In., Interior Door Width 48 In., Powered By 24VDC, Projection from Wall 7 In., Spring Size Adjustable 1 to 6, Color Black, For Use With Interior and Exterior Doors, Arm Material Steel
