NSI Industries WWC-R-25R Wing Connector; Red
Mfr # WWC-R-25R
Zoro # G604040348
Key Features
Specifications
Product Information
Dimensions
Details
Description

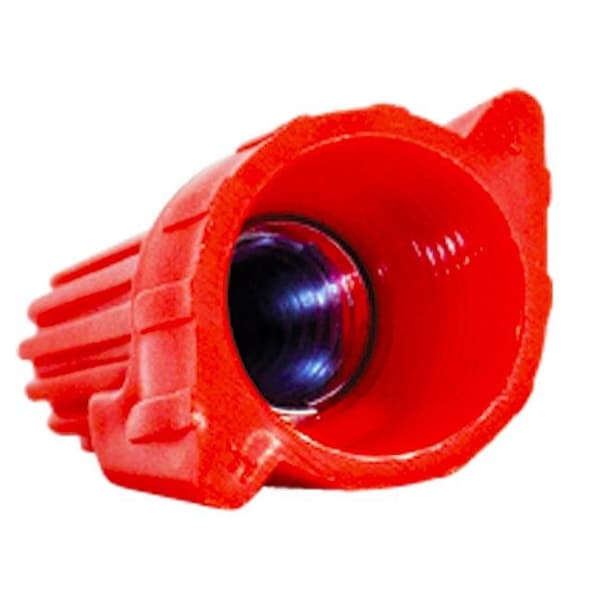

Wing Connector, Red
Color-coded, professional quality twist-on winged wire connectors. Exceptional "wing" design increases torque force, making twisting easier and faster, especially in tight places. Square hardened internal spring "bites" into copper wires and then expands as wires are threaded, for greater range. Outer shell is designed to protect against: Flame: UL94V-2 flame retardant; Temperature extremes: 105°C (221°F); Diluted acid, alkaline solutions or hydrocarbons. Wire range: 18-8 AWG, Max: 5#12 min: 3#16, 600 volts/300 volt. Max: 600V (building wire) 1000V (fixtures and signs). UL & SA listed. Red. Packed 25 in Zip-Bag.
Specifications- Dimension: 7.24 x 3.74 x 1 in.
- Cube: 27.08
- Weight: 0.21 lbs
