Shop NSI TORK

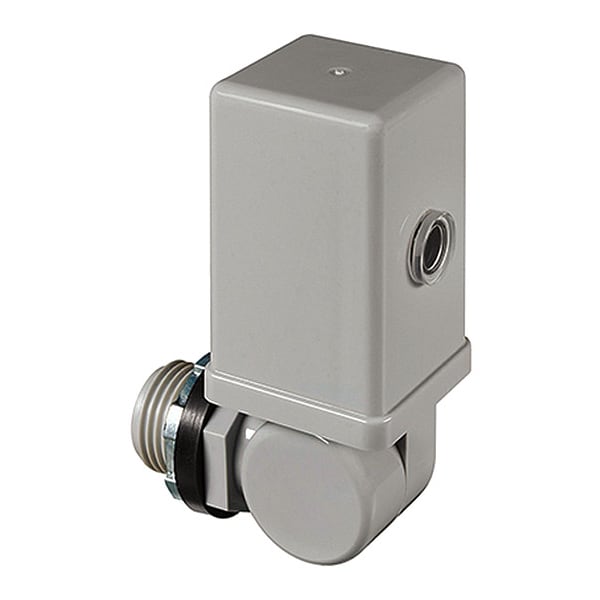

Compact Fluorescent, HID, Inductive, LED Photocontrol, 2,220 W, Gray, 5 sec Max, 3 sec Min

  • Mfr # ZSS124

  • Zoro # G9914686

product price:  $26.19
/ea

Key Features

Compatible Lighting
Compact Fluorescent, HID, Inductive, LED
AC Operating Voltage
105-305V AC
Foot Candles On
1.5
Time Delay - Maximum
5 sec
Foot Candles Off
2.25
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ZSS124
Zoro #
G9914686
UPC #
786261789143
Country of Origin
China

Dimensions

Length
2 in
Overall Height
2 in
Width
2 3/4 in
Depth
4 1/4 in
Manufacturers Warranty Length
10 yr
Dimensions
.500 Conduit Mount
Stem Thread Size
1/2''
Overall Depth
4.25 in
Overall Width
2.75 in
Stem Diameter
1/2 in

Details

Item
Photocontrol
Compatible Lighting
Compact Fluorescent, HID, Inductive, LED
AC Operating Voltage
105-305V AC
Foot Candles On
1.5
Time Delay - Maximum
5 sec
Foot Candles Off
2.25
Time Delay - Minimum
3 sec
Housing Material
Polycarbonate
Temp. Range
-40 Degrees to 158 Degrees F
Body Color
Gray
Includes
Conduit Mount
Contact Form
SPST
Standards
ANSI, UL Listed
Type
Lexan Swivel Photocontrol
Standard
cULus
Timing Range
Instant On
Sensitivity
Turn On Is 1.5fc
Frequency Rating
50-60 Hz
Sensor Type
Molded Sealed IR
Application
Roadway, Area, Parking, Flood and Security Type Lighting Fixtures
Power Consumption
.5 Watts
Operating Temperature - Maximum
158 Degrees F
On Illumination - Maximum
1.5 fc
Indoor/Outdoor Usage
Outdoor
Resistance Properties
Weather Resistant
Series
Z
Operating Temperature - Minimum
-40 Degrees F
Off Illumination - Maximum
2.25 fc
Incandescent Current - Maximum
15 A
Features
11 in 16 GA Hookup Wires
Mounting Style
Stem, Stem and Swivel
Ballast Current - Maximum
8 A
Wattage - Maximum
2,220 W

Description

Photocontrol, Mounting Swivel, Voltage 120 to 277V AC, Max. Wattage 2,220, Max. Incandescent Amps 15 A, Max. Ballast Amps 8 A, 1.5 Foot Candles On, 2.25 Foot Candles Off, Color Gray, Temp. Range -40 Degrees to 158 Degrees F, Length 2 in, Width 2 3/4 in, Depth 4 1/4 in, Contact Form SPST, Housing Material Polycarbonate, Standards ANSI, UL Listed, Includes Conduit Mount
