  11. Electromechanical Timer Switch, 24 hr.

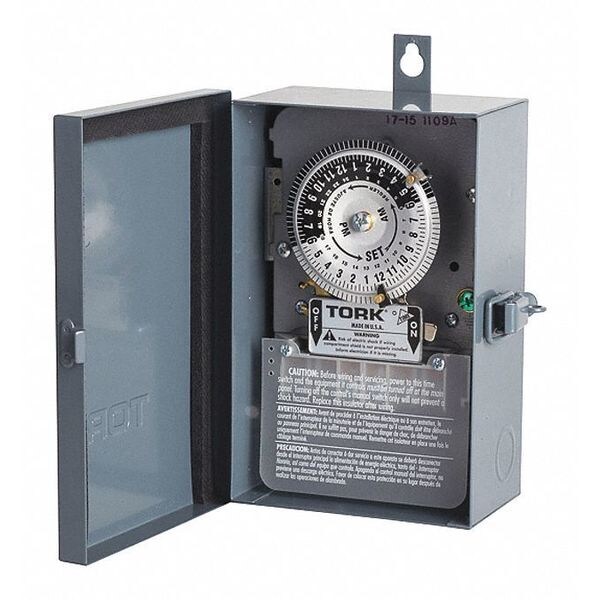

Nsi Tork Electromechanical Timer Switch, 24 hr. 1109A-O - main

Electromechanical Timer Switch, 24 hr.

  • Mfr # 1109A-O

  • Zoro # G6273108

product price: $90.89
/ea
Free Shipping & Returns

Key Features

Voltage
120, 208 to 277V AC
Amps
40 A
Min. Time Setting
20 min
Max. Time Setting
24 hr
Contact Form
DPST
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1109A-O
Zoro #
G6273108
UPC #
786261101068
Country of Origin
China

Dimensions

Depth
3 1/4 in
Width
4 11/16 in
Overall Width
4 11/16 in
Overall Depth
3 1/4 in

Details

Item
Electromechanical Timer
Voltage
120, 208 to 277V AC
Amps
40 A
Min. Time Setting
20 min
Max. Time Setting
24 hr
Contact Form
DPST
Max. On/Off Cycles
12
Standards
CSA 60730, UL Listed
Number of Trippers Included
12
Number of Poles
2
Type
24 Hour Time Switch
Product Type
Timer
Enclosure
NEMA 3 Metal Indoor-Outdoor
Standard
cULus
Operating Temperature
-40 to 165 F
Scheduling
24 Hour
Frequency Rating
60hZ
Action
DPST
On/Off Cycles - Maximum
12
Horsepower @ 240V - Maximum
5 hp
Operating Temperature - Maximum
149 Degrees F
Body Material
Metal
Number of Trippers - Maximum
12
NEMA Enclosure Rating
3R
AC Voltage Rating
120/208-277V AC
Current Rating - Maximum
40 A
Time Setting - Minimum
20 min
Application
HVAC, Fans, Lighting, Pump Controls, Water Heaters
Operating Temperature - Minimum
-40 Degrees F
Series
1109A
Horsepower @ 120V - Maximum
2 hp
Time Setting - Maximum
24 hr
Indoor/Outdoor Usage
Indoor/Outdoor
Features
Protects Gears for Extended Life
Time Maximum Setting
25 hr.
Time Minimum Setting
21 min

Description

Electromechanical Timer, Number of Poles 2, Contact Form DPST, Voltage 120, 208 to 277V AC, Amps 40 A, Min. Time Setting 20 min, Max. Time Setting 24 hr, Max. On/Off Cycles 12, Width 4 11/16 in, Depth 3 1/4 in, Number of Trippers Included 12, Standards CSA 60730, UL Listed
