  11. Electronic Timer, 7 Days, DPST
This item is Discontinued.

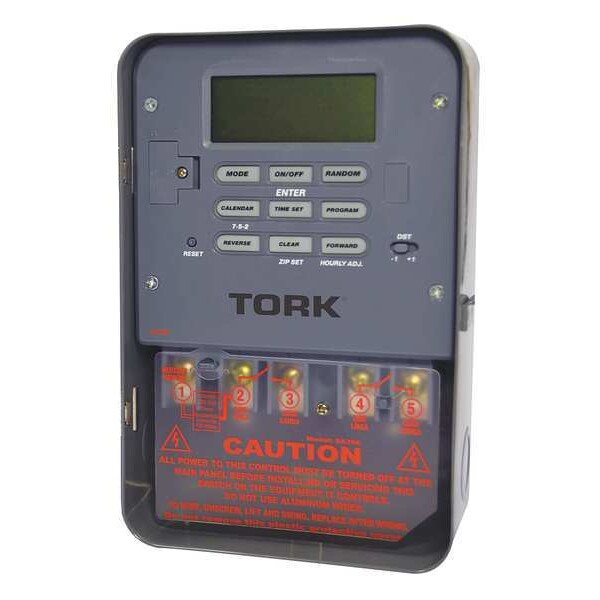

Nsi Tork Electronic Timer, 7 Days, DPST SA306

Electronic Timer, 7 Days, DPST (Discontinued)

  • Mfr # SA306
  • Zoro # G0721061
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SA306
Zoro #
G0721061
UPC #
786261165497
Country of Origin
China

Dimensions

Depth
3-1/16"
Height
7-7/8"
Width
5-1/4"
Display Height
15/16 in
Display Width
2 3/8 in

Details

Item
Electronic Timer
Operation Mode
7 days
Number of Channels
1
Contact Form
DPST
Voltage
120VAC
Amps
40
HP @ 120V
1-1/2
Events Available - Electronic Timer
4
Available Actions - Electronic Timer
On/Off
Event Allocation - Electronic Timer
1 On/Off Action = 2 Events
Max. On/Off Cycles
1
Standards
California Title 24, cETLus
Max. Time Setting
24 hr.
Description/Special Features
ZIP-SET: Fast and easy. Just enter area code and timer adjusts to your time with preset program of Sunset ON and time off program.SCHEDULING: One On/Off set point pair is active at a time. Only one schedule may be active at a time: Schedule 1, Schedule 2, a combination of 1 & 2, or ZipSet(TM). Day combinations for 7-5-2 speed programming.
NEMA Rating
1
Min. Time Setting
1 min.
Operating Temp.
32 Degrees to 100 Degrees F
Color
Gray
Enclosure
Metal
Number of Poles
2
Backup Time
2 yr
Mounting
Surface
Backup Device
(2) CR2032 Lithium Batteries
Features
7-5-2 Day Programming
Mounting Style
Surface
Astronomic Functionality
Astronomic
Body Color
Gray
NEMA Enclosure Rating
1

Description

Electronic Timer, Operation Mode 7 Days, Number of Channels 1, Contact Form DPST, Voltage 120V AC, Amps 40, HP @ 120V 1-1/2, Events Available - Electronic Timer 4, Available Actions - Electronic Timer On/Off, Event Allocation - Electronic Timer 1 On/Off Action = 2 Events, Enclosure Metal, Mounting Surface, Number of Poles 2, Min. Time Setting 1 min, Max. Time Setting 24 hr, NEMA Rating 1, Color Gray, Backup Device (2) CR2032 Lithium Batteries, Backup Time 2 yr
