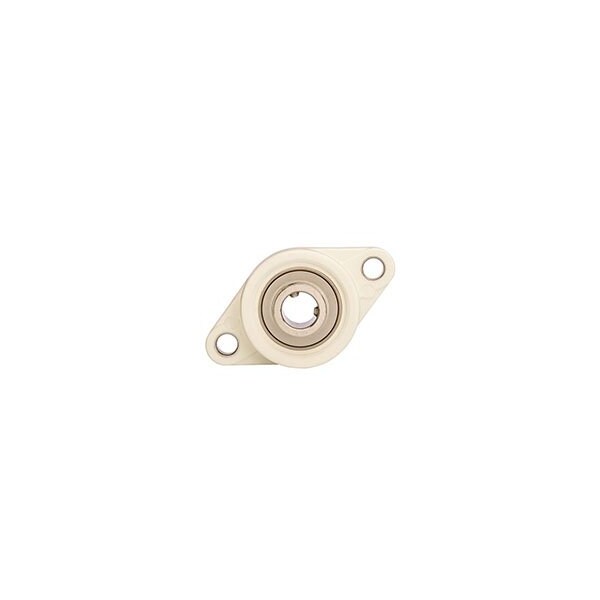

2 Holes, Rhombus Housing, 2 Bolt Flange Bearing, Radial Ball, 1 in Dia, Thermoplastic, Set Screw

  • Mfr # SUCNFL205-16

  • Zoro # G1330244

product price:  $216.99
/ea
Free Shipping & Returns

Key Features

System of Measurement
Inch
Housing Type
Rhombus
Number of Mount Holes
2
Bearing Insert Type
Radial Ball
Shaft Locking Type
Set Screw
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SUCNFL205-16
Zoro #
G1330244
UPC #
-
Country of Origin
Multiple

Dimensions

Bolt Size
M10
Bore Diameter
1 in
Mount Hole Center-to-Center Length
3-57/64 in
Overall Length
5-7/64 in
Overall Width
2 in
Overall Height
2-3/4 in
Flange Thickness
33/64 in
Dimension S
7/16 in
Dimension E
3 57/64 in
Dimension G
17/32 in
Dimension L
2 3/4 in
Dimension A
5 1/8 in
Dimension B
1 11/32 in
Mounting Bolt Size
3/8, M10
Back Side to Center Width
0.669 in
Mount Hole Size
0.433 in
Wire Rope Length
5 7/64 in
Mount Hole Center-to-Center Height
0 in
Bolt Circle Diameter
3.9 in
Center Height
1 3/8 in
Inner Ring Width
1.34 in

Details

System of Measurement
Inch
Item
2 Bolt Flange Bearing
Housing Type
Rhombus
Number of Mount Holes
2
Bearing Insert Type
Radial Ball
Shaft Locking Type
Set Screw
Housing Material
Thermoplastic
Bearing Insert Material
Stainless Steel
Dynamic Load Capacity
2,473 lbf
Bearing Lubrication
Relubricateable
Series
Sentinel Series
Finish
None
Static Load Capacity
8000 N
Temp. Range
-4 to 250 Degrees F
Includes
(2) Set Screws
Static Radial Load Capacity
1,799 lbf
Included Bearing
SUC205-16
Maximum Speed
5,100 RPM
Bore Type
Cylindrical
Resistance Properties
Corrosion-Resistant
Closure
Double Sealed
Minimum Temperature
-4 Degrees F
Bearing Material Grade
440C
Maximum Temperature
212 Degrees F
Application
Agriculture, Automotive, Cosmetic/Pharmaceutical, Food and Beverage, Food Processing, Industrial Machinery, Machine Tools, Material Handling, Refinery/Petrochemical
Lubrication Openings
None
Housing Material Finish
Unfinished
Seal Type
Contact
Lubricant Material
H-1 Food Grade Grease
Rolling Element Rows
1
Seal Material
Silicone
Expansion Type
Fixed
Internal Clearance
CN
Includes Bearing Cap
Bearing Cap Not Included
Split Housing
Not Split
Maximum Misalignment Angle
2 Degrees
Number of Rows
1
Standards
IP69K
Load Direction
Thrust, Radial
Features
Cap Ready
For Environment
Food and Beverage, Washdown

Description

Flange Mount Bearing, Back Side to Center Width 0.669 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 in, Bore Type Cylindrical, Center Height 1 3/8 in, Closure Double Sealed, Expansion Type Fixed, For Environment Food and Beverage, Washdown, Housing Material Thermoplastic, Housing Type Rhombus, Included Bearing SUC205-16, Lubricant Material H-1 Food Grade Grease, Maximum Speed 5,100 RPM, Maximum Temperature 212 Degrees F
