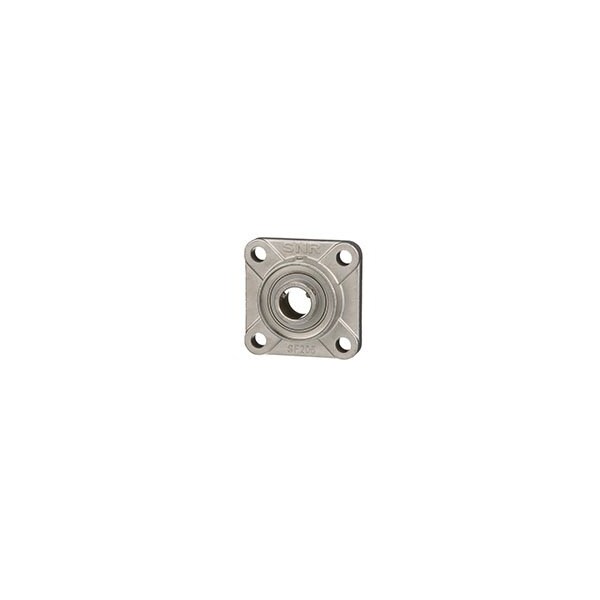

4 Holes, Square Housing, 4 Bolt Flange Bearing, Radial Ball, 1 in Dia, Stainless Steel, Set Screw

  • Mfr # SUCF205-16
  • Zoro # G3114824
product price:
$
198.99
/ea
Free Shipping & Returns

Key Features

System of Measurement
Inch
Housing Type
Square
Number of Mount Holes
4
Bearing Insert Type
Radial Ball
Shaft Locking Type
Set Screw
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SUCF205-16
Zoro #
G3114824
UPC #
-
Country of Origin
Multiple

Dimensions

Bolt Size
M10
Bore Diameter
1 in
Mount Hole Center-to-Center Length
2-3/4 in
Overall Length
3-3/4 in
Overall Width
1-13/32 in
Overall Height
3-3/4 in
Flange Thickness
35/64 in
Dimension S
12 mm
Dimension E
70 mm
Dimension A
95 mm
Dimension G
13 mm
Dimension N
14.3 mm
Dimension L
27 mm
Mount Hole Size
0.472 in
Mounting Bolt Size
3/8, M10
Back Side to Center Width
0.63 in
Mount Hole Center-to-Center Height
2 3/4 in
Wire Rope Length
3 3/4 in
Inner Ring Width
1.34 in
Center Height
1 55/64 in
Length
3 3/4 in
Fits Chest Size
Cap Ready

Details

System of Measurement
Inch
Item
4 Bolt Flange Bearing
Housing Type
Square
Number of Mount Holes
4
Bearing Insert Type
Radial Ball
Shaft Locking Type
Set Screw
Housing Material
Stainless Steel
Bearing Insert Material
Stainless Steel
Static Load Capacity
8000 N
Finish
Chrome
Bearing Lubrication
Relubricateable
Temp. Range
-4 Degrees to 250 Degrees F
Series
Sentinel Series
Dynamic Load Capacity
2,475 lbf
Includes
(2) Set Screws
Included Bearing
SUC205-16
Lubricant Material
H-1 Food Grade Solid Lubricant
Static Radial Load Capacity
1,800 lbf
Rolling Element Rows
1
Seal Type
Contact
Lubrication Openings
None
Maximum Speed
5,100 RPM
Housing Material Grade
304
Bearing Material Grade
440C
Application
Agriculture, Automotive, Cosmetic/Pharmaceutical, Food and Beverage, Food Processing, Industrial Machinery, Machine Tools, Material Handling, Refinery/Petrochemical
Housing Material Finish
Unfinished
Bore Type
Cylindrical
Minimum Temperature
-4 Degrees F
Resistance Properties
Corrosion-Resistant
Seal Material
Silicone
Maximum Temperature
212 Degrees F
Closure
Double Sealed
Expansion Type
Fixed
Includes Bearing Cap
Bearing Cap Not Included
Standards
IP69K
Features
Cap Ready
Load Direction
Thrust, Radial
Number of Rows
1
For Environment
Food and Beverage, Washdown
Split Housing
Not Split
Internal Clearance
CN
Maximum Misalignment Angle
2 Degrees

Description

Flange Mount Bearing, Back Side to Center Width 0.63 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 in, Bore Type Cylindrical, Center Height 1 55/64 in, Closure Double Sealed, Expansion Type Fixed, For Environment Food and Beverage, Washdown, Housing Material Stainless Steel, Housing Type Square, Included Bearing SUC205-16, Lubricant Material H-1 Food Grade Solid Lubricant, Maximum Speed 5,100 RPM, Maximum Temperature 212 Degrees F
