Shop NTN

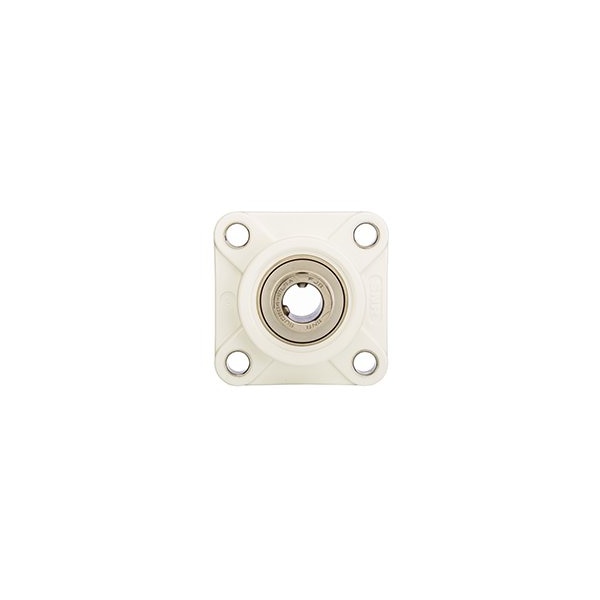

4 Holes, Square Housing, 4 Bolt Flange Bearing, Radial Ball, 1 in Dia, Thermoplastic, Set Screw

  • Mfr # SUCFPL205-16C0FG1

  • Zoro # G0619722

product price:
$
237.99
/ea
Free Shipping & Returns

Key Features

System of Measurement
Inch
Housing Type
Square
Number of Mount Holes
4
Bearing Insert Type
Radial Ball
Shaft Locking Type
Set Screw
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
SUCFPL205-16C0FG1
Zoro #
G0619722
UPC #
-
Country of Origin
Multiple
System of Measurement
Inch
Item
4 Bolt Flange Bearing
Housing Type
Square
Number of Mount Holes
4
Bearing Insert Type
Radial Ball
Shaft Locking Type
Set Screw
Housing Material
Thermoplastic
Bearing Insert Material
Stainless Steel
Finish
Unfinished
Includes
Open End Cap
Dynamic Load Capacity
2,473 lbf
Series
Sentinel Series
Static Load Capacity
8000 N
Standards
IP69K
Bearing Lubrication
Maintenance-Free
Temp. Range
-4 to 250 Degrees F
Lubrication Openings
None
Resistance Properties
Corrosion-Resistant
Lubricant Material
H-1 Food Grade Solid Lubricant
Maximum Speed
5,100 RPM
Rolling Element Rows
1
Seal Material
Silicone
Bore Type
Cylindrical
Housing Material Finish
Unfinished
Included Bearing
SUC205-16FG1
Static Radial Load Capacity
1,798 lbf
Minimum Temperature
-4 Degrees F
Maximum Temperature
212 Degrees F
Seal Type
Contact
Closure
Double Sealed
Bearing Material Grade
440C
Application
Agriculture, Automotive, Cosmetic/Pharmaceutical, Food and Beverage, Food Processing, Industrial Machinery, Machine Tools, Material Handling, Refinery/Petrochemical
Expansion Type
Fixed
For Environment
Food and Beverage, Washdown
Maximum Misalignment Angle
2 Degrees
Split Housing
Not Split
Features
Cap Ready, Maintenance Free Solid Lubricant
Load Direction
Thrust, Radial
Internal Clearance
CN
Number of Rows
1
Includes Bearing Cap
Bearing Cap Included

Description

Flange Mount Bearing, Back Side to Center Width 0.669 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 in, Bore Type Cylindrical, Center Height 1 55/64 in, Closure Double Sealed, Expansion Type Fixed, For Environment Food and Beverage, Washdown, Housing Material Thermoplastic, Housing Type Square, Included Bearing SUC205-16FG1, Lubricant Material H-1 Food Grade Solid Lubricant, Maximum Speed 5,100 RPM, Maximum Temperature 212 Degrees F
