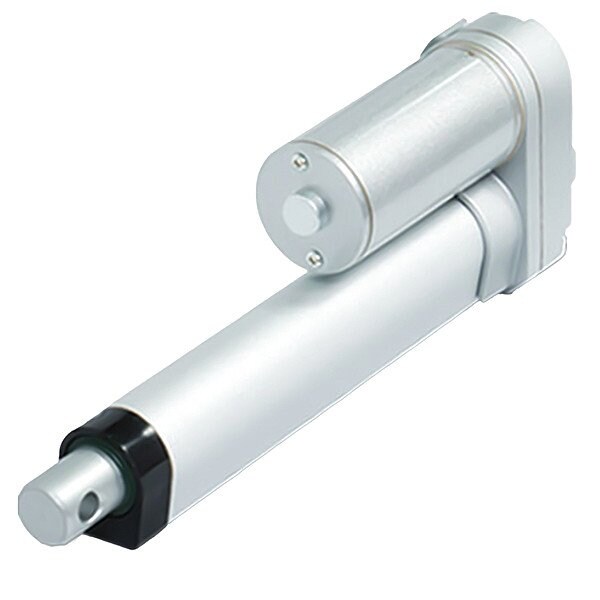

Actuator, 34 lbf, 12V DC
Mfr # ND3L-12-5-250P-IP65-A393
Zoro # G411799170
product price:Â
$
207.99
/ea
Free Shipping & Returns
Key Features
Enclosure Type
IP54
Full Load Amps
3.2 A
Drive System Type
Gear
Load Capacity
34 lbf
Nut Material
Plastic
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ND3L-12-5-250P-IP65-A393
- Zoro #
- G411799170
- UPC #
- -
- Country of Origin
- Taiwan, Province of China
Dimensions
- Retracted Length
- 391 mm
- Overall Width
- 1.653 in
- Stroke Length
- 250 mm
Description
Actuator, Motor Type Permanent Magnet, Voltage 12V DC, Nut Material Plastic, Load Capacity 34 lbf, Stroke Length 250 mm, Speed at Full Load 0.21 in/sec, Duty Cycle 25 Percent, Full Load Current 3.2 A, Retracted Length 391 mm, Gear Material Aluminum, Includes Capacitor Capacitor Included, Drive System Type Gear, Enclosure IP Rating IP65, Housing Material Aluminum, Limit Switch Setting Fixed, Operating Temperature - Maximum 149 Degrees F, Operating Temperature - Minimum -13 Degrees F
