Shop NTN

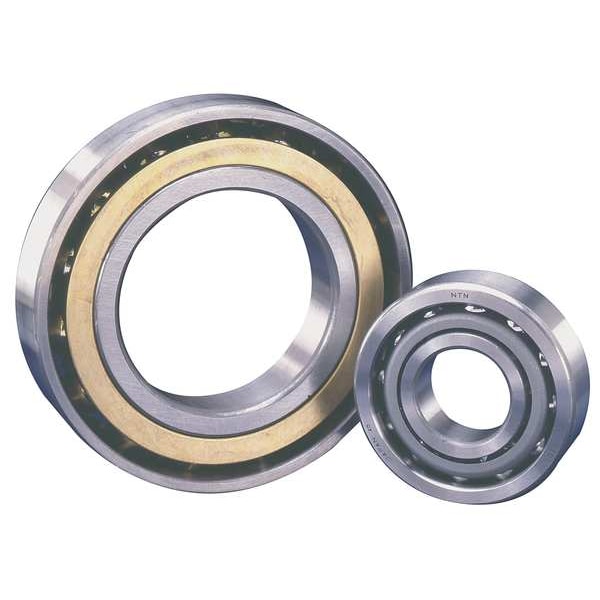

Angular Bearing, 40 Deg, 15mm Bore, 35mm OD

  • Mfr # 7202BG

  • Zoro # G2701325

product price:
$
41.59
/ea

Key Features

Contact Angle (Degree)
40 Degrees
Bore Dia.
15 mm
Outside Dia.
35 mm
Width
11 mm
Cage Material
Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
7202BG
Zoro #
G2701325
UPC #
-
Country of Origin
Japan
Item
Angular Contact Ball Bearing
Contact Angle (Degree)
40 Degrees
Cage Material
Steel
Dynamic Load Capacity (Lb.)
1,880 lb
Static Load Capacity (Lb.)
980 lb
Max. RPM
18,000 RPM
Dynamic Load Capacity (N)
8,363 N
Temp. Range (F)
-13 to 250
Static Load Capacity (N)
4,359 N
ABEC Tolerance
1
Bearing Industry Number
7202
Ring Material
Alloy Steel
Closure
Open
Ring Material Grade
AISI 52100
ABEC Rating
1
Maximum Speed
18,000 RPM
Minimum Temperature
-40 Degrees F
ISO Rating
Class 0
Contact Bearing Type
Angular Contact
Static Radial Load Capacity
4,350 N
Standards
ISO Certified
Maximum Temperature
248 Degrees F
Matched Bearing Type
Not Matched/Single Bearing
Dynamic Radial Load Capacity
8,350 N
System of Measurement
Metric
Number of Rows
One
Ball Material
Alloy Steel
Lubricant Material
Grease, Oil
Contact Angle
40 Degrees
Cage Type
Pressed
Finish
Chrome Plated
Internal Clearance
CN
Industry Number
7202
Bearing Lubrication
Relubricateable
Series
ACBB

Description

Angular Contact Ball Bearing, Ball Material Alloy Steel, Bearing Industry Number 7202, Bore Diameter 15 mm, Cage Material Steel, Closure Open, Contact Angle 40 Degrees , Contact Bearing Type Angular Contact, Lubricant Material Grease, Oil, Matched Bearing Type Not Matched/Single Bearing, Maximum Speed 18,000 RPM, Maximum Temperature 248 Degrees F, Minimum Temperature -40 Degrees F, Number of Rows One, Outside Diameter 35 mm, Overall Width 11 mm, Ring Material Alloy Steel
