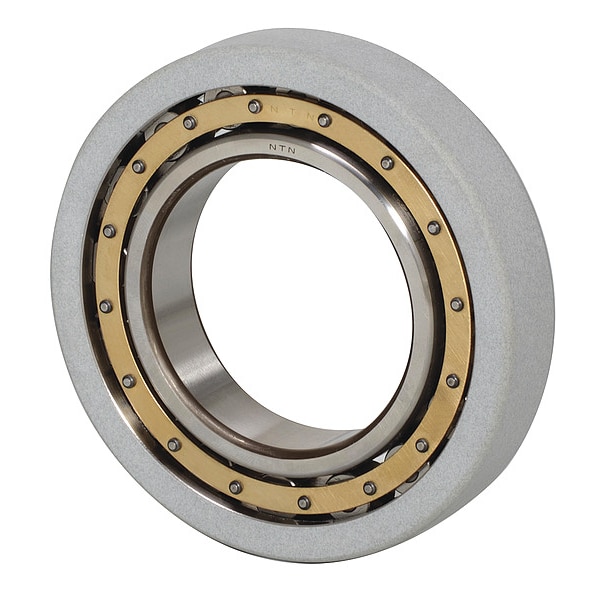

Cylindrical Roller Brg, 320,100 mm Bore
Mfr # 7MC3-NU320EGRBC3
Zoro # G7265886
product price: $3,278.99
/ea
Free Shipping & Returns
Key Features
Bore Dia.
100 mm
Outside Dia.
215 mm
Width
55 mm
Roller Material
Alloy Steel
Cage Material
Brass
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
7MC3-NU320EGRBC3
Zoro #
G7265886
UPC #
-
Country of Origin
Japan
Dimensions
Bore Dia.
100 mm
Outside Dia.
215 mm
Width
55 mm
Shaft Fillet Radius
2.5 mm
Outside Diameter
215 mm
Bore Diameter
100 mm
Bore Diameter Tolerance
+0/-0.020 mm
Inner Ring Outside Diameter
113 mm
Outside Diameter Tolerance
+0/-0.030 mm
Overall Width
47 mm
Outer Ring Inside Diameter
202 mm
Housing Fillet Radius
2.5 mm
Description
Cylindrical Roller Bearing, Bearing Industry Number 320, Bore Diameter 100 mm, Bore Type Cylindrical, Cage Material Brass, Closure Open, Inner Ring Outside Diameter 113 mm, Lubricant Material Grease, Oil, Maximum Speed 2,900 RPM Grease, 3,500 RPM Oil, Maximum Temperature 120 Degrees C, Minimum Temperature -40 Degrees C, Number of Rows One, Outer Ring Inside Diameter 202 mm, Outside Diameter 215 mm, Overall Width 47 mm, Ring Material Alloy Steel, Roller Material Alloy Steel
