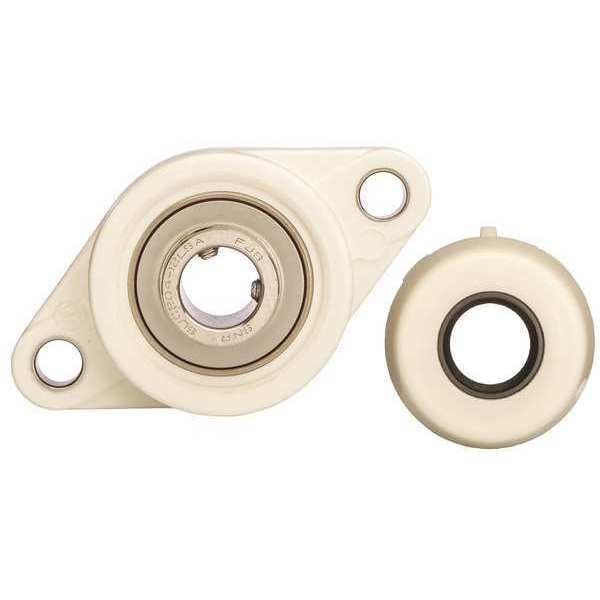

Flange Bearing, 2-Bolt, 3/4" Bore Dia.
Mfr # SUCNFL204-12C0FG1
Zoro # G0618018
product price: $208.99
/ea
Free Shipping & Returns
Key Features
Bearing Insert Type
Radial Ball
Bore Dia.
3/4 in
Shaft Locking Type
Set Screws
Bearing Housing Material Type
PBT
Bearing Insert Material
Stainless Steel
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
SUCNFL204-12C0FG1
Zoro #
G0618018
UPC #
-
Country of Origin
Multiple
Dimensions
Bore Dia.
3/4 in
Bolt Size
3/8 in
Overall Height
2 35/64 in
Overall Width
1 53/64 in
Overall Length
4 7/16 in
Mount Hole Size
0.433 in
Flange Thickness
7/16 in
Mounting Bolt Size
3/8 in
Mount Hole Center-to-Center Length
3 17/32 in
Back Side to Center Width
0.606 in
Bore Diameter
3/4 in
Description
2 Bolt Flange Bearing, Back Side to Center Width 0.606 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 3/4 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Polymer, Housing Type Rhombus, Included Bearing SUC204-12, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 5,900 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -4 Degrees F, Number of Mount Holes 2, Overall Height 2 35/64 in
